| Manufacturer Part Number: | D15S33E4GX00LF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9723 Pieces |
| Unit Price: | Quote by Email |

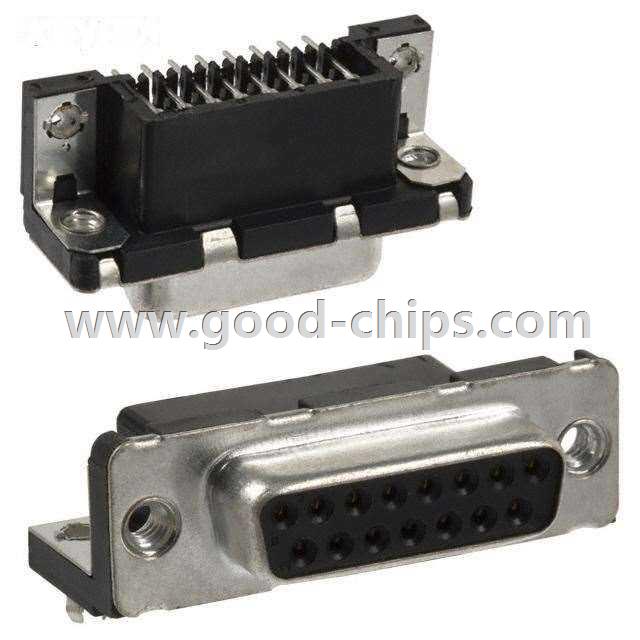

| Description: | 15 Position D-Sub Receptacle, Female Sockets Connector, Through Hole, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | D15S33E4GX00LF Datasheet |
| Internal Part Number | 898-D15S33E4GX00LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | D-Sub I/O Connectors | |
| 3D Model | d15S33E4GV00LF.igs d15S33E4GV00LF.prt d15S33E4GV00LF.stp | |
| PCN Design/Specification | Dsub Insulator Raw Material 24/Nov/2009 Delta D Series 30/May/2011 Delta-D Documentation 07/Nov/2014 Delta-D Drawing 12/Nov/2014 | |
| Online Catalog | Delta D Series | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Amphenol FCI | |
| Series | Delta D | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | D-Sub | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 15 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 2 (DA, A) | |
| Contact Type | Signal | |
| Mounting Type | Through Hole, Right Angle | |
| Flange Feature | Housing/Shell (4-40) | |
| Termination | Solder | |
| Features | Board Lock | |
| Shell Material, Finish | Steel, Tin Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Voltage Rating | 300V | |
| Current Rating | 5A | |
| Housing Material | Polybutylene Terephthalate (PBT) | |
| Color | Black | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | D15S33E4GX00LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
D15S33E4GX00LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of D15S33E4GX00LF is new and unused, you can buy D15S33E4GX00LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for D15S33E4GX00LF.
