Manufacturer Part Number: | D2808-42 |
---|---|
Manufacturer: | Harwin Inc. |
Product Category: | Sockets for ICs, Transistors |
Available Quantity: | 9762 Pieces |
Unit Price: | Quote by Email |

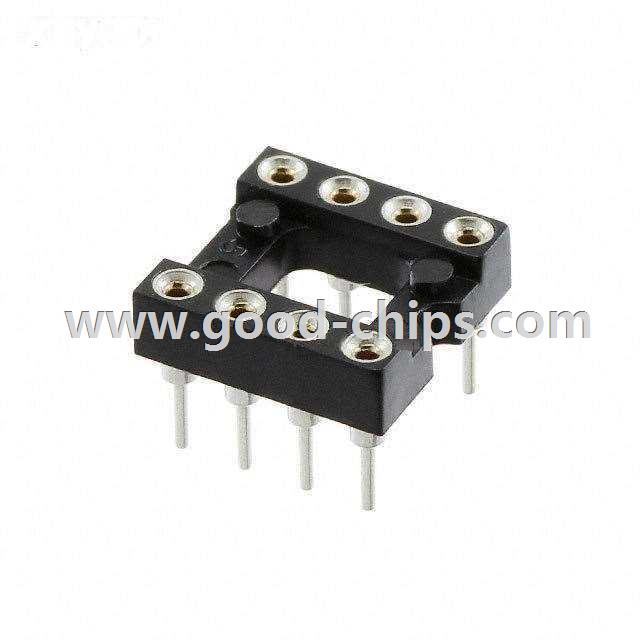

Description: | CONN IC DIP SOCKET 8POS GOLD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | D2808-42 Datasheet |
Internal Part Number | 898-D2808-42 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | D2 Series | |
Category | Connectors, Interconnects | |
Family | Sockets for ICs, Transistors | |
Manufacturer | Harwin Inc. | |
Series | D2 | |
Packaging | Tube | |
Part Status | Active | |
Type | DIP, 0.3" (7.62mm) Row Spacing | |
Number of Positions or Pins (Grid) | 8 (2 x 4) | |
Pitch - Mating | 0.100" (2.54mm) | |
Contact Finish - Mating | Gold | |
Contact Finish Thickness - Mating | Flash | |
Contact Material - Mating | Beryllium Copper | |
Mounting Type | Through Hole | |
Features | Open Frame | |
Termination | Solder | |
Pitch - Post | 0.100" (2.54mm) | |
Contact Finish - Post | Tin | |
Contact Finish Thickness - Post | 196.8µin (5.00µm) | |
Contact Material - Post | Brass | |
Housing Material | Plastic | |
Operating Temperature | -55°C ~ 125°C | |
Termination Post Length | 0.126" (3.20mm) | |
Material Flammability Rating | UL94 V-0 | |
Current Rating | 1A | |
Contact Resistance | 10 mOhm | |
Standard Package | 52 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | D2808-42 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
D2808-42 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of D2808-42 is new and unused, you can buy D2808-42 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for D2808-42.
