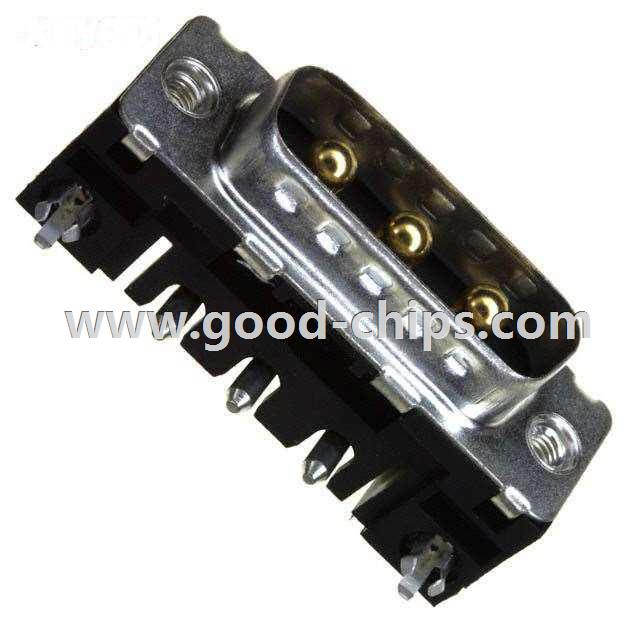

Manufacturer Part Number: | D3W3P36A6GL08LF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | D-Sub Connectors |
Available Quantity: | 9383 Pieces |
Unit Price: | Quote by Email |
Description: | 3 (Power) Position D-Sub, Combo Plug, Male Pins Connector, Through Hole, Right Angle Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | D3W3P36A6GL08LF Datasheet |
Internal Part Number | 898-D3W3P36A6GL08LF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Dsub Insulator Raw Material 24/Nov/2009 Delta D Series 30/May/2011 | |
Online Catalog | Delta D Series | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | Amphenol FCI | |
Series | Delta D | |
Packaging | Tray | |
Part Status | Active | |
Connector Style | D-Sub, Combo | |
Connector Type | Plug, Male Pins | |
Number of Positions | 3 (Power) | |
Number of Rows | 1 | |
Shell Size, Connector Layout | 2 (DA, A) - 3W3 | |
Contact Type | Power | |
Mounting Type | Through Hole, Right Angle | |
Flange Feature | Housing/Shell (M3) | |
Termination | Solder | |
Features | Board Lock, Grounding Indents | |
Shell Material, Finish | Steel, Tin Plated | |
Contact Finish | Gold, GXT™ | |
Contact Finish Thickness | 30µin (0.76µm) | |
Ingress Protection | - | |
Operating Temperature | -55°C ~ 125°C | |
Voltage Rating | 300V | |
Current Rating | 30A | |
Housing Material | Thermoplastic | |
Color | - | |
Standard Package | 25 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | D3W3P36A6GL08LF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
D3W3P36A6GL08LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of D3W3P36A6GL08LF is new and unused, you can buy D3W3P36A6GL08LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for D3W3P36A6GL08LF.
