| Manufacturer Part Number: | DA14580-01A32 |
|---|---|
| Manufacturer: | Dialog Semiconductor GmbH |
| Product Category: | RF Transceiver ICs |
| Available Quantity: | 13010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC RF TxRx + MCU Bluetooth Bluetooth v4.1 2.4GHz 48-VFQFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DA14580-01A32 Datasheet |
| Internal Part Number | 898-DA14580-01A32 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Single-Mode Bluetooth Smart System-on-Chip Solution | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| Featured Product | SmartBond™ DA1458x Bluetooth® Smart Family | |
| Online Catalog | DA14580 | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver ICs | |
| Manufacturer | Dialog Semiconductor GmbH | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | TxRx + MCU | |
| RF Family/Standard | Bluetooth | |
| Protocol | Bluetooth v4.1 | |
| Modulation | - | |
| Frequency | 2.4GHz | |
| Data Rate (Max) | - | |
| Power - Output | -1dBm | |
| Sensitivity | -93dBm | |
| Memory Size | 32kB OTP, 84kB ROM, 50kB SRAM | |
| Serial Interfaces | I²C, SPI, UART | |
| GPIO | 32 | |
| Voltage - Supply | 2.35 V ~ 3.3 V | |
| Current - Receiving | 3.7mA | |
| Current - Transmitting | 3.4mA | |
| Operating Temperature | -40°C ~ 85°C | |

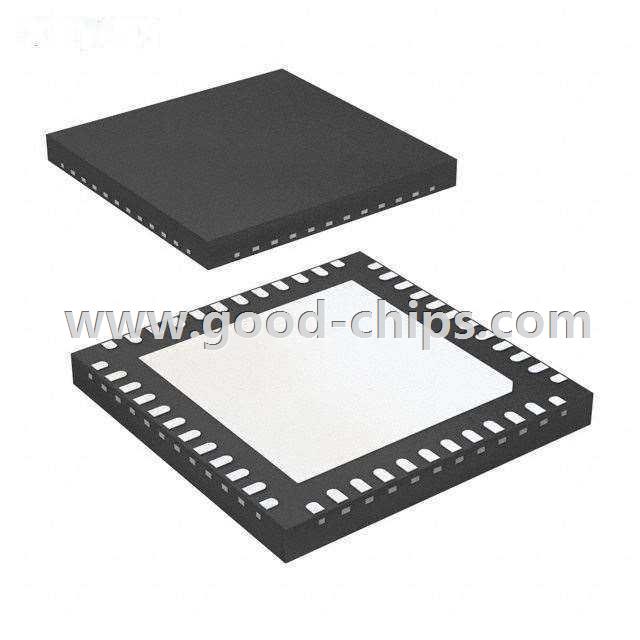

| Package / Case | 48-VFQFN Exposed Pad | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DA14580-01A32 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DA14580-01A32 is in stock for immediate shipping now. We are the distributor of Dialog Semiconductor GmbH all series components. The condition of DA14580-01A32 is new and unused, you can buy DA14580-01A32 Dialog Semiconductor GmbH with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DA14580-01A32.
