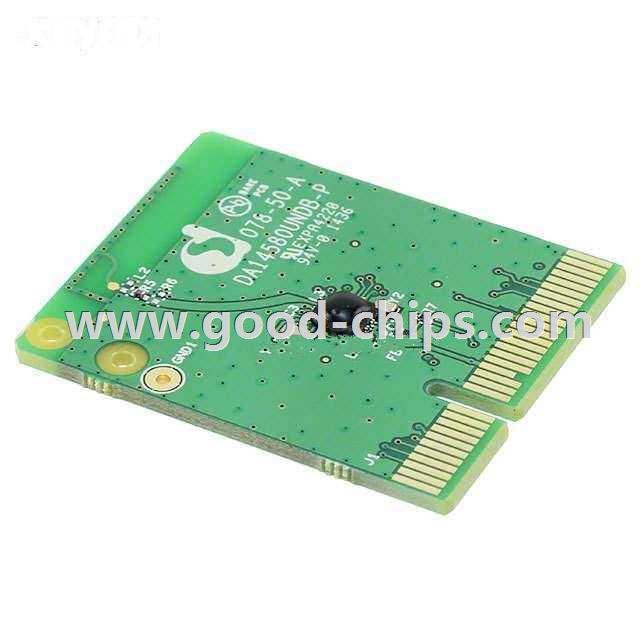

| Manufacturer Part Number: | DA14580UNDB-P |
|---|---|
| Manufacturer: | Dialog Semiconductor GmbH |
| Product Category: | RF Evaluation and Development Kits, Boards |
| Available Quantity: | 9024 Pieces |
| Unit Price: | Quote by Email |
| Description: | PRO DAUGHTERBRD DA14580 WLCSP34 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DA14580UNDB-P Datasheet |
| Internal Part Number | 898-DA14580UNDB-P | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Single-Mode Bluetooth Smart System-on-Chip Solution | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| Featured Product | SmartBond™ DA1458x Bluetooth® Smart Family | |
| Online Catalog | DA14580 Development Kits | |
| Category | RF/IF and RFID | |
| Family | RF Evaluation and Development Kits, Boards | |
| Manufacturer | Dialog Semiconductor GmbH | |
| Series | SmartBond™ | |
| Part Status | Active | |
| Type | Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) | |
| Frequency | 2.4GHz | |
| For Use With/Related Products | DA14580 | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DA14580UNDB-P | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DA14580UNDB-P is in stock for immediate shipping now. We are the distributor of Dialog Semiconductor GmbH all series components. The condition of DA14580UNDB-P is new and unused, you can buy DA14580UNDB-P Dialog Semiconductor GmbH with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DA14580UNDB-P.
