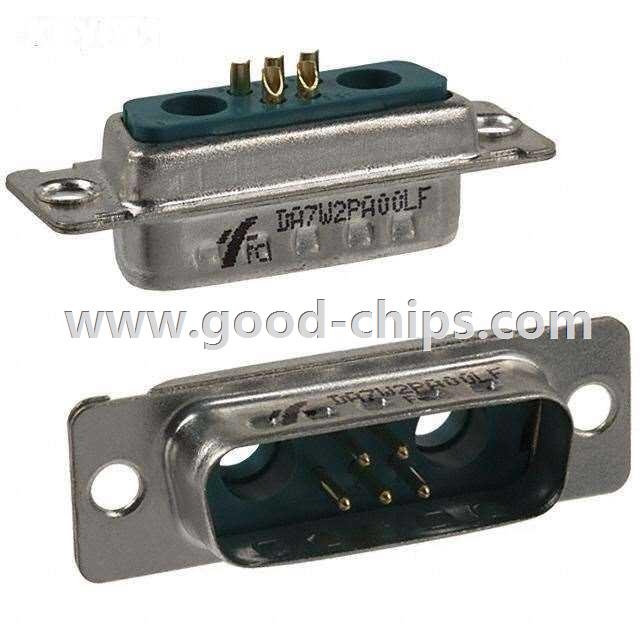

| Manufacturer Part Number: | DA7W2PA00LF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9152 Pieces |
| Unit Price: | Quote by Email |
| Description: | 7 (5 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector, Free Hanging (In-Line) Solder Cup |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DA7W2PA00LF Datasheet |
| Internal Part Number | 898-DA7W2PA00LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | D-Sub I/O Connectors | |
| 3D Model | da7w2paxx.igs da7w2paxx.prt da7w2paxx.stp | |
| Online Catalog | DW Series | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Amphenol FCI | |
| Series | DW | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | D-Sub, Combo | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 7 (5 + 2 Power) | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 | |
| Contact Type | Signal and Power (Not Included) | |
| Mounting Type | Free Hanging (In-Line) | |
| Flange Feature | Housing/Shell (Unthreaded) | |
| Termination | Solder Cup | |
| Features | Grounding Indents | |
| Shell Material, Finish | Steel, Tin Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Voltage Rating | - | |
| Current Rating | 7.5A | |
| Housing Material | Thermoplastic | |
| Color | - | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DA7W2PA00LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DA7W2PA00LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of DA7W2PA00LF is new and unused, you can buy DA7W2PA00LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DA7W2PA00LF.
