Manufacturer Part Number: | DAMM-15S-D |
---|---|
Manufacturer: | ITT Cannon, LLC |
Product Category: | D-Sub Connectors |
Available Quantity: | 9041 Pieces |
Unit Price: | Quote by Email |

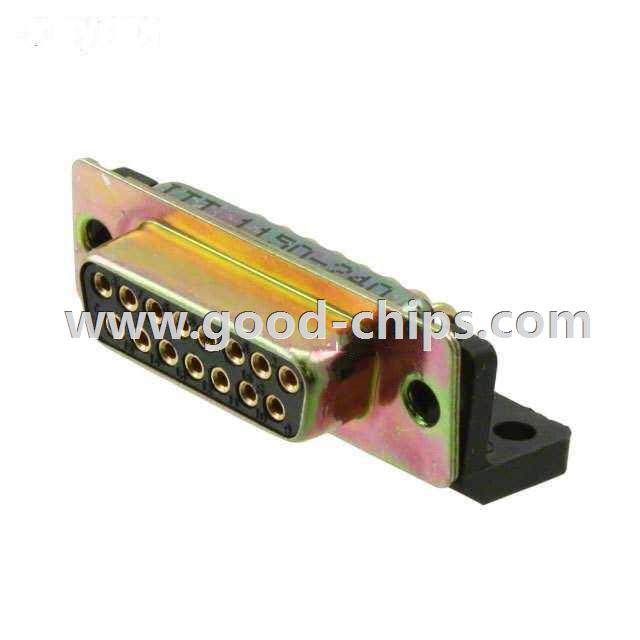

Description: | 15 Position D-Sub Receptacle, Female Sockets Connector, Panel Mount, Through Hole, Right Angle Solder |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DAMM-15S-D Datasheet |
Internal Part Number | 898-DAMM-15S-D | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | D-Subminiature Connector Series | |
Online Catalog | MIL-DTL-24308, DMM Series | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | ITT Cannon, LLC | |
Series | MIL-DTL-24308, D*MM | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | D-Sub | |
Connector Type | Receptacle, Female Sockets | |
Number of Positions | 15 | |
Number of Rows | 2 | |
Shell Size, Connector Layout | 2 (DA, A) | |
Contact Type | Signal | |
Mounting Type | Panel Mount, Through Hole, Right Angle | |
Flange Feature | Housing/Shell (Unthreaded) | |
Termination | Solder | |
Features | Mounting Brackets | |
Shell Material, Finish | Steel, Yellow Chromate Plated Zinc | |
Contact Finish | Gold | |
Contact Finish Thickness | 50µin (1.27µm) | |
Ingress Protection | - | |
Operating Temperature | -55°C ~ 150°C | |
Voltage Rating | - | |
Current Rating | 7.5A | |
Housing Material | Polyester | |
Color | Black | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DAMM-15S-D | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DAMM-15S-D is in stock for immediate shipping now. We are the distributor of ITT Cannon, LLC all series components. The condition of DAMM-15S-D is new and unused, you can buy DAMM-15S-D ITT Cannon, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DAMM-15S-D.
