| Manufacturer Part Number: | DAP222M3T5G |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Array 1 Pair Common Anode Standard 80V 100mA (DC) Surface Mount SOT-723 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DAP222M3T5G Datasheet |
| Internal Part Number | 898-DAP222M3T5G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Copper Wire 19/May/2010 | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Configuration | 1 Pair Common Anode | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 80V | |
| Current - Average Rectified (Io) (per Diode) | 100mA (DC) | |
| Voltage - Forward (Vf) (Max) @ If | 1.2V @ 100mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | 4ns | |
| Current - Reverse Leakage @ Vr | 100nA @ 70V | |
| Mounting Type | Surface Mount | |

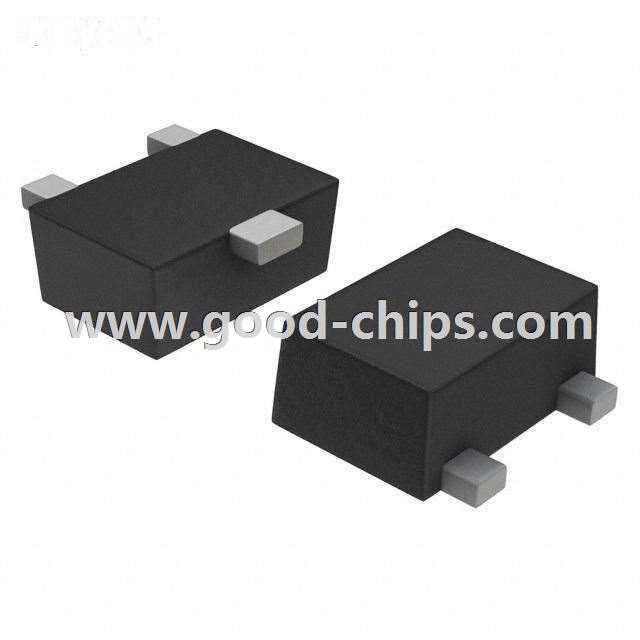

| Package / Case | SOT-723 | |
| Supplier Device Package | SOT-723 | |
| Standard Package | 8,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DAP222M3T5G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DAP222M3T5G is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of DAP222M3T5G is new and unused, you can buy DAP222M3T5G ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DAP222M3T5G.
