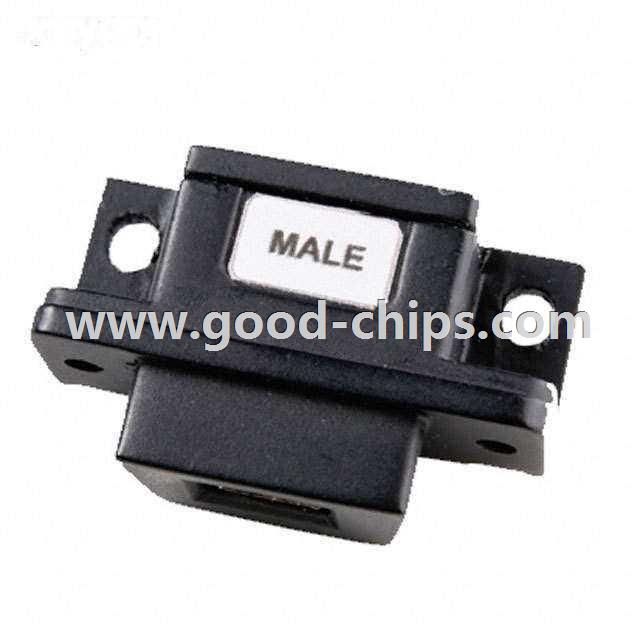

DB9-USB-M

DB9-USB-M
Manufacturer Part Number:DB9-USB-M
Manufacturer:
Product Category:USB, DVI, HDMI Connectors
Available Quantity:9042 Pieces
Unit Price:Quote by Email
Description:USB - mini B RS-232 9-Pin Serial Plug Connector 9 Position Through Hole, Right Angle, Horizontal
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: DB9-USB-M Datasheet
DB9-USB-M´s Parameters
Internal Part Number898-DB9-USB-M
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Mfg Application NotesUpgrading a DB9 RS232 Application Note
Submitting Modified Drivers for Windows Hrdw Certification
Drivers Installation Guide for Windows VISTA
Drivers Installation Guide for Windows XP
Device EEPROM Programming Using Vinculum VNC1L
Using the Modem Emulation Mode in VCP Driver
Configuring VCP Drivers to use Location IDs
Data Throughput, Latency and Handshaking
Optimizing D2xx Data Throughput
Drivers Installation Guide for Windows 7
Aliasing VCP Baud Rates
Accessing The EEPROM User Area of Devices
How COM Ports Are Allocated On Driver Installation
Re-Assigning COM Port Numbers Using Windows Registry
D2XX Access Using PERL Interface PERL 5.0 Prog Guide
Drivers Installation Guide for MAC OSX
Detecting USB Device Insertion and Removal
Driver Installation Guide for Windows 8
Windows Driver Pre-Installation
Windows Combined Driver Model
Drivers Installation Guide for Linux
ComPort Assignment Utility Guide
Featured ProductDB9-USB-RS232 Modules
Online Catalog FTDI - USB
CategoryConnectors, Interconnects
FamilyUSB, DVI, HDMI Connectors
ManufacturerFTDI, Future Technology Devices International Ltd
Series-
PackagingBulk
Part StatusActive
Connector TypeUSB - mini B
Number of Contacts9
GenderPlug
SpecificationsRS-232 9-Pin Serial
Mounting TypeThrough Hole, Right Angle, Horizontal
FeaturesD-Shaped Housing
Ingress Protection-
Standard Package 10
Weight0.001 KG
ApplicationEmail for details
Replacement PartDB9-USB-M
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

DB9-USB-M is in stock for immediate shipping now. We are the distributor of FTDI, Future Technology Devices International Ltd all series components. The condition of DB9-USB-M is new and unused, you can buy DB9-USB-M FTDI, Future Technology Devices International Ltd with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for DB9-USB-M.
