| Manufacturer Part Number: | DBT72410F |
|---|---|
| Manufacturer: | Cynergy 3 |
| Product Category: | Signal Relays, Up to 2 Amps |
| Available Quantity: | 9020 Pieces |
| Unit Price: | Quote by Email |

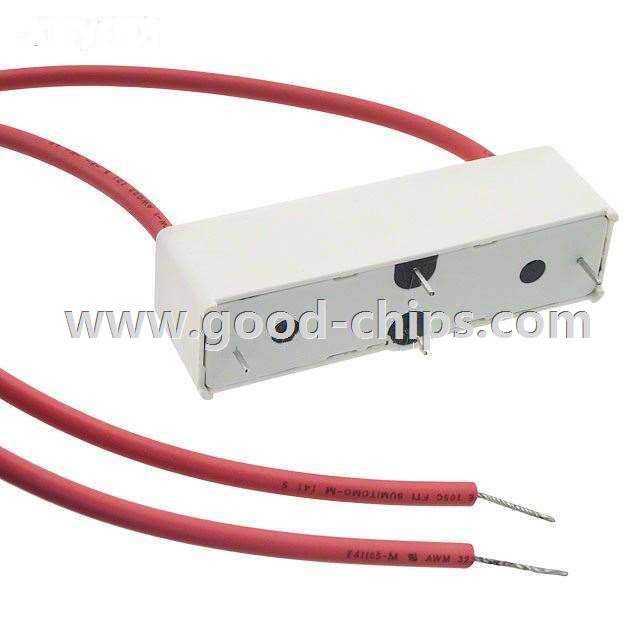

| Description: | Reed Relay SPST-NC (1 Form B) Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DBT72410F Datasheet |
| Internal Part Number | 898-DBT72410F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Reed Relay Appl Notes | |
| Featured Product | D Series Reed Relays | |
| PCN Design/Specification | D,D-HR Series 30/Apr/2015 | |
| Online Catalog | D Series | |
| Category | Relays | |
| Family | Signal Relays, Up to 2 Amps | |
| Manufacturer | Cynergy 3 | |
| Series | D | |
| Packaging | Tray | |
| Part Status | Active | |
| Relay Type | Reed | |
| Coil Type | Non Latching | |
| Coil Current | 25.9mA | |
| Coil Voltage | 24VDC | |
| Contact Form | SPST-NC (1 Form B) | |
| Contact Rating (Current) | 2A | |
| Switching Voltage | 7000VAC, 7000VDC - Max | |
| Turn On Voltage (Max) | 20 VDC | |
| Turn Off Voltage (Min) | 4 VDC | |
| Operate Time | 2ms | |
| Release Time | 3ms | |
| Features | - | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin, Wire Leads | |
| Contact Material | Tungsten (W) | |
| Coil Power | - | |
| Coil Resistance | 925 Ohms | |
| Operating Temperature | -20°C ~ 70°C | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DBT72410F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DBT72410F is in stock for immediate shipping now. We are the distributor of Cynergy 3 all series components. The condition of DBT72410F is new and unused, you can buy DBT72410F Cynergy 3 with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DBT72410F.
