Manufacturer Part Number: | DC1059A |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9014 Pieces |
Unit Price: | Quote by Email |

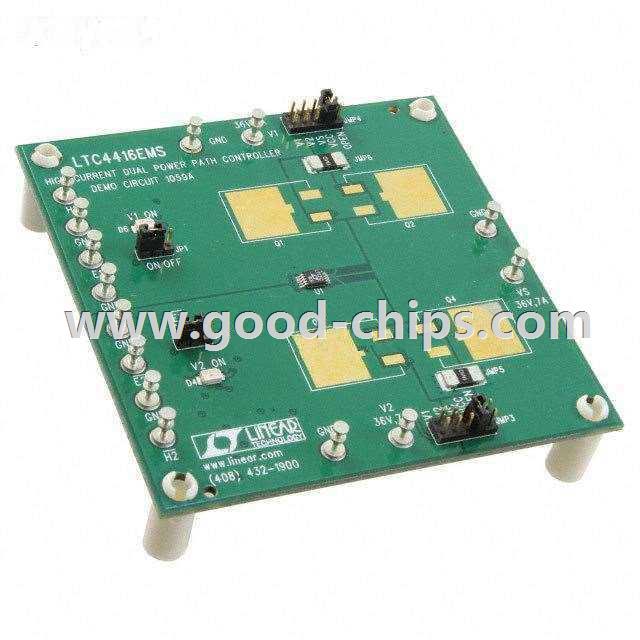

Description: | LTC4416 PowerPath™ Series Power Management, ORing Controller / Ideal Diode Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC1059A Datasheet |
Internal Part Number | 898-DC1059A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | DC1059A Schematic DC1059A Design Files Development Tool Selector | |
Online Catalog | LT4416 Demonstration Board | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Linear Technology | |
Series | PowerPath™ | |
Part Status | Active | |
Main Purpose | Power Management, ORing Controller / Ideal Diode | |
Embedded | No | |
Utilized IC / Part | LTC4416 | |
Primary Attributes | 2-Channel (Dual) | |
Secondary Attributes | LED Status Indicators | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC1059A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC1059A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1059A is new and unused, you can buy DC1059A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1059A.
