Manufacturer Part Number: | DC1306A |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
Available Quantity: | 9014 Pieces |
Unit Price: | Quote by Email |

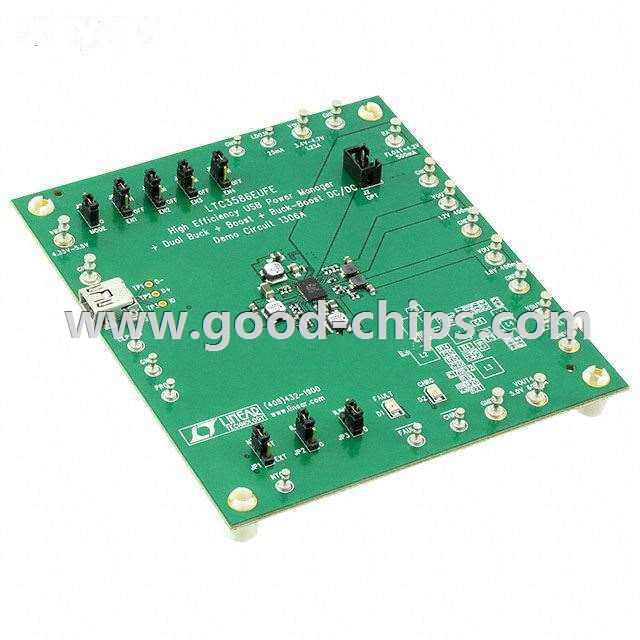

Description: | LTC3586 Bat-Track™, PowerPath™ DC/DC, Step Up or Down with LDO 7, Non-Isolated Outputs Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC1306A Datasheet |
Internal Part Number | 898-DC1306A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | DC1306A Design File DC1306A Schematic Development Tool Selector | |
Online Catalog | LTC3586 Demonstration Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
Manufacturer | Linear Technology | |
Series | Bat-Track™, PowerPath™ | |
Part Status | Active | |
Main Purpose | DC/DC, Step Up or Down with LDO | |
Outputs and Type | 7, Non-Isolated | |
Power - Output | - | |
Voltage - Output | - | |
Current - Output | - | |
Voltage - Input | 4.35 V ~ 5.5 V | |
Regulator Topology | Boost, Buck | |
Frequency - Switching | 2.25MHz | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | LTC3586 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC1306A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC1306A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1306A is new and unused, you can buy DC1306A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1306A.
