Manufacturer Part Number: | DC1367A |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
Available Quantity: | 9011 Pieces |
Unit Price: | Quote by Email |

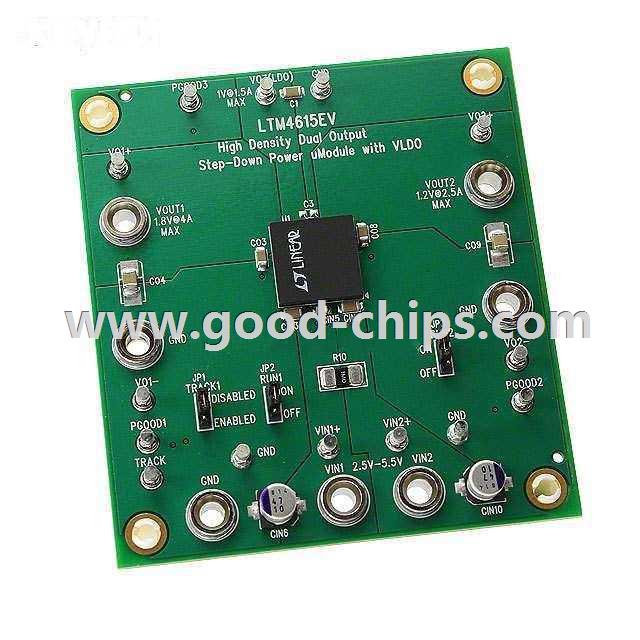

Description: | LTM4615 LTM®, uModule® DC/DC, Step Down with LDO 3, Non-Isolated Outputs Evaluation Board |
Lead Free Status / RoHS Status: | Not applicable / Not applicable |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC1367A Datasheet |
Internal Part Number | 898-DC1367A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Software Download | LTM4615 LTspice IV for Windows LTspice IV for Mac OS X 10.7+ | |
Design Resources | DC1367A Design Files DC1367A Schematic Development Tool Selector | |
Featured Product | Power Management Solutions Guide – Linear Technology | |
Reference Design Library | DC1367A: Dual DC/DC with LDO, 2.5V ~ 5.5V in | |
Online Catalog | LTM4615EV Demo Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
Manufacturer | Linear Technology | |
Series | LTM®, uModule® | |
Part Status | Active | |
Main Purpose | DC/DC, Step Down with LDO | |
Outputs and Type | 3, Non-Isolated | |
Power - Output | - | |
Voltage - Output | 1V, 1.2V, 1.8V | |
Current - Output | 4A, 2.5A, 1.5A | |
Voltage - Input | 2.5 V ~ 5.5 V | |
Regulator Topology | Buck | |
Frequency - Switching | 1.25MHz | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | LTM4615 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC1367A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC1367A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1367A is new and unused, you can buy DC1367A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1367A.
