Manufacturer Part Number: | DC1400A |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
Available Quantity: | 9011 Pieces |
Unit Price: | Quote by Email |

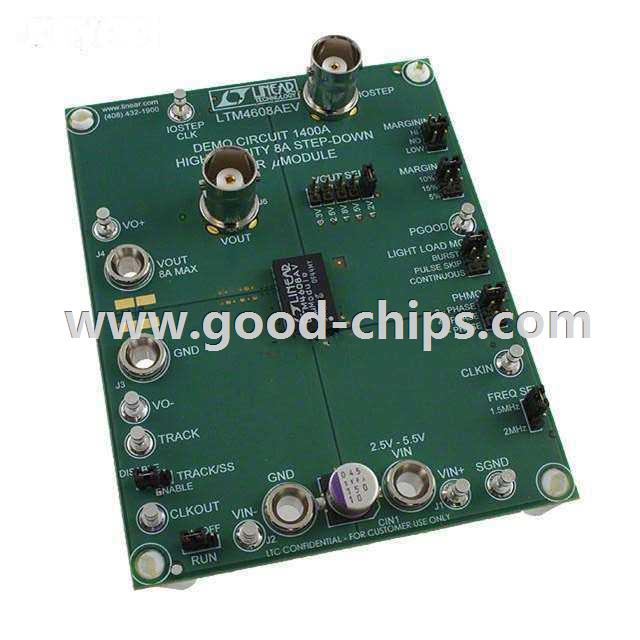

Description: | LTM4608 LTM®, uModule® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
Lead Free Status / RoHS Status: | Not applicable / Not applicable |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC1400A Datasheet |
Internal Part Number | 898-DC1400A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Software Download | LTspice IV for Windows LTspice IV for Mac OS X 10.7+ | |
Design Resources | LTM4608A Spice Model DC1400A Design Files DC1400A Schematic Development Tool Selector | |
Reference Design Library | DC1400A: 0.6 ~ 3.3V @ 8A, 2.5 ~ 5.5V in | |
Online Catalog | LTM4608AEV Demo Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
Manufacturer | Linear Technology | |
Series | LTM®, uModule® | |
Part Status | Active | |
Main Purpose | DC/DC, Step Down | |
Outputs and Type | 1, Non-Isolated | |
Power - Output | - | |
Voltage - Output | 0.6V, 1.2V, 1.5V, 1.8V, 2.5V, or 3.3V | |
Current - Output | 8A | |
Voltage - Input | 2.5 V ~ 5.5 V | |
Regulator Topology | Buck | |
Frequency - Switching | 1.5MHz | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | LTM4608 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC1400A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC1400A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1400A is new and unused, you can buy DC1400A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1400A.
