Manufacturer Part Number: | DC1477B |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
Available Quantity: | 9011 Pieces |
Unit Price: | Quote by Email |

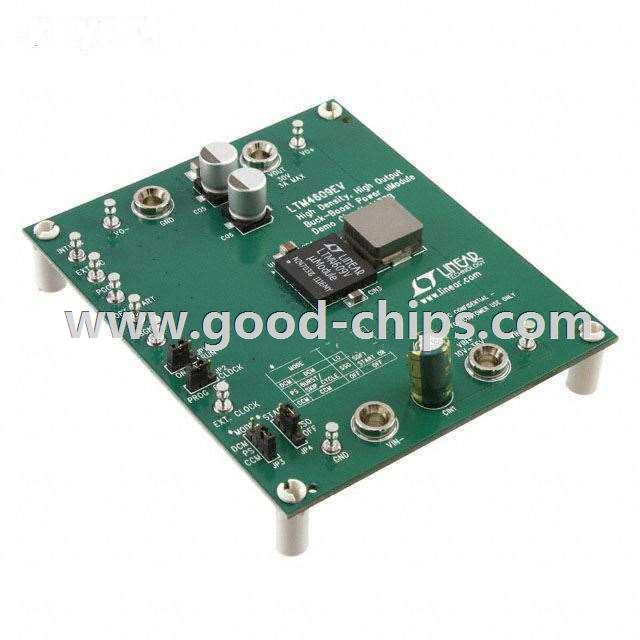

Description: | LTM4609 µModule® DC/DC, Step Up or Down 1, Non-Isolated Outputs Evaluation Board |
Lead Free Status / RoHS Status: | Not applicable / Not applicable |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC1477B Datasheet |
Internal Part Number | 898-DC1477B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Software Download | LTspice IV for Windows LTspice IV for Mac OS X 10.7+ | |
Design Resources | DC1477B Schematic DC1477B Design Files Development Tool Selector | |
Reference Design Library | DC1477B: 30V @3A (10Vin) @8A (24Vin) @10A (>30Vin) | |
Online Catalog | LTM4609EV Demo Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
Manufacturer | Linear Technology | |
Series | µModule® | |
Part Status | Active | |
Main Purpose | DC/DC, Step Up or Down | |
Outputs and Type | 1, Non-Isolated | |
Power - Output | - | |
Voltage - Output | 30V | |
Current - Output | 10A | |
Voltage - Input | 10 V ~ 36 V | |
Regulator Topology | Buck-Boost | |
Frequency - Switching | 300kHz | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | LTM4609 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC1477B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC1477B is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1477B is new and unused, you can buy DC1477B Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1477B.
