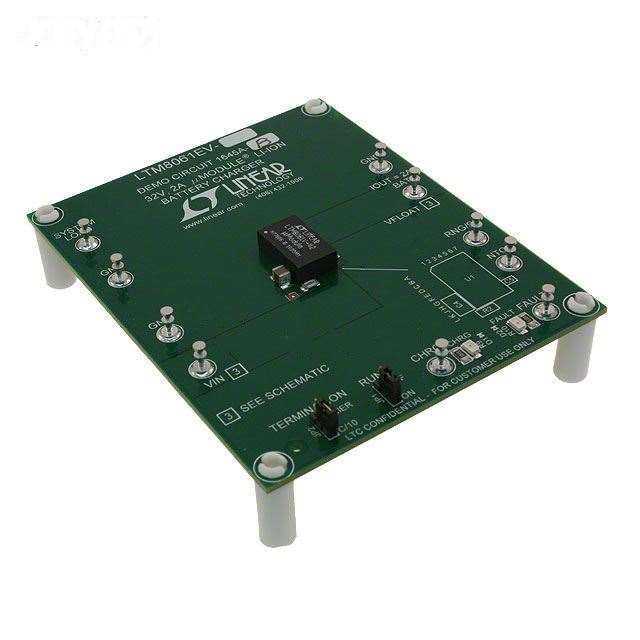

| Manufacturer Part Number: | DC1645A-B |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |
| Description: | LTM8061 LTM®, uModule® Series Power Management, Battery Charger Evaluation Board |
| Lead Free Status / RoHS Status: | Not applicable / Not applicable |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1645A-B Datasheet |
| Internal Part Number | 898-DC1645A-B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LTM806x Step-Down Micro-Module Battery Charger | |
| Design Resources | DC1645A Design Files DC1645A Schematic Development Tool Selector | |
| Reference Design Library | DC1645A-B: 1 Cell, 4.2V, 2A Max, Li-Ion/LiPo | |
| Online Catalog | LTM8061-4.1/4.2/8.2/8.4 Demonstration Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Linear Technology | |
| Series | LTM®, uModule® | |
| Part Status | Active | |
| Main Purpose | Power Management, Battery Charger | |
| Embedded | No | |
| Utilized IC / Part | LTM8061 | |
| Primary Attributes | 2 Cell-Li-Ion, 4.2V 2A Output | |
| Secondary Attributes | LED Status Indicators | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1645A-B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1645A-B is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1645A-B is new and unused, you can buy DC1645A-B Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1645A-B.
