| Manufacturer Part Number: | DC1783A-E |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - Analog to Digital Converters (ADCs) |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |

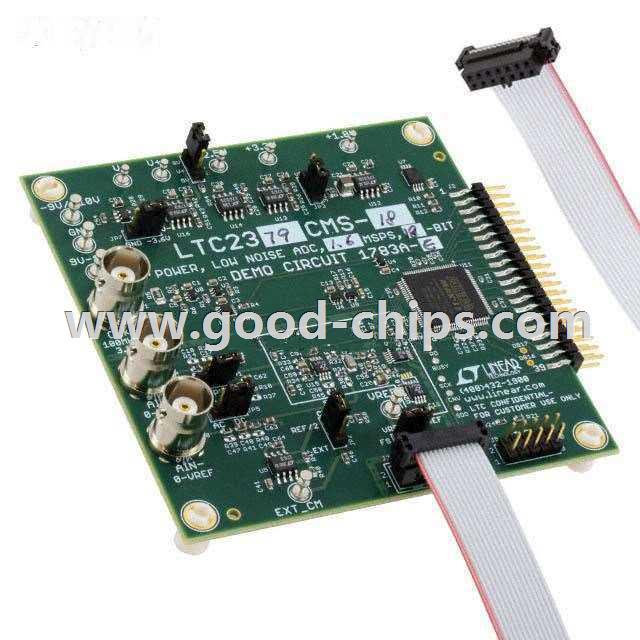

| Description: | LTC2379-18 - 18 Bit 1.6M Samples per Second Analog to Digital Converter (ADC) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1783A-E Datasheet |
| Internal Part Number | 898-DC1783A-E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | WHAT IS LINDUINO? | |
| Software Download | QuikEval System PScope | |
| Design Resources | DC1783A Design Files DC1783A Schematic Development Tool Selector | |
| Featured Product | General Purpose SAR ADCs | |
| Online Catalog | LTC2376, LTC2377, LTC2378, LTC2379 and LTC2380 Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Analog to Digital Converters (ADCs) | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Number of A/D Converters | 1 | |
| Number of Bits | 18 | |
| Sampling Rate (Per Second) | 1.6M | |
| Data Interface | SPI | |
| Input Range | ±VREF | |
| Power (Typ) @ Conditions | 18mW @ 1.6MSPS | |
| Utilized IC / Part | LTC2379-18 | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1783A-E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1783A-E is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1783A-E is new and unused, you can buy DC1783A-E Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1783A-E.
