| Manufacturer Part Number: | DC1827A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - LED Drivers |
| Available Quantity: | 9023 Pieces |
| Unit Price: | Quote by Email |

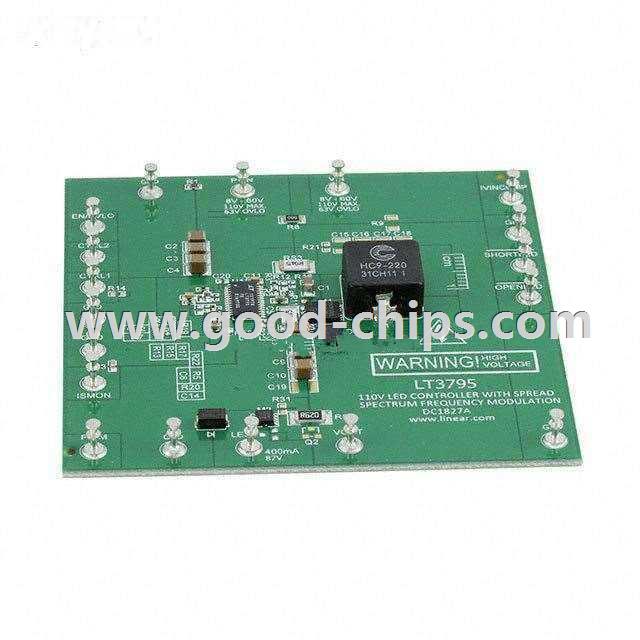

| Description: | LT3795 1, Non-Isolated Output LED Driver Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1827A Datasheet |
| Internal Part Number | 898-DC1827A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Software Download | LTspice IV for Windows LTspice IV for Mac OS X 10.7+ LT3795 Demo Circuit | |
| Design Resources | DC1827A Design File DC1827A Schematic Development Tool Selector Lighting Product Selector | |
| Reference Design Library | DC1827A: 400mA @ 87V Max, 8 ~ 60V in, Boost Driver | |
| Online Catalog | LT3795 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - LED Drivers | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Current - Output / Channel | 400mA | |
| Outputs and Type | 1, Non-Isolated | |
| Voltage - Output | 87V | |
| Features | Dimmable | |
| Voltage - Input | 8 V ~ 60 V | |
| Supplied Contents | Board | |
| Utilized IC / Part | LT3795 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1827A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1827A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1827A is new and unused, you can buy DC1827A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1827A.
