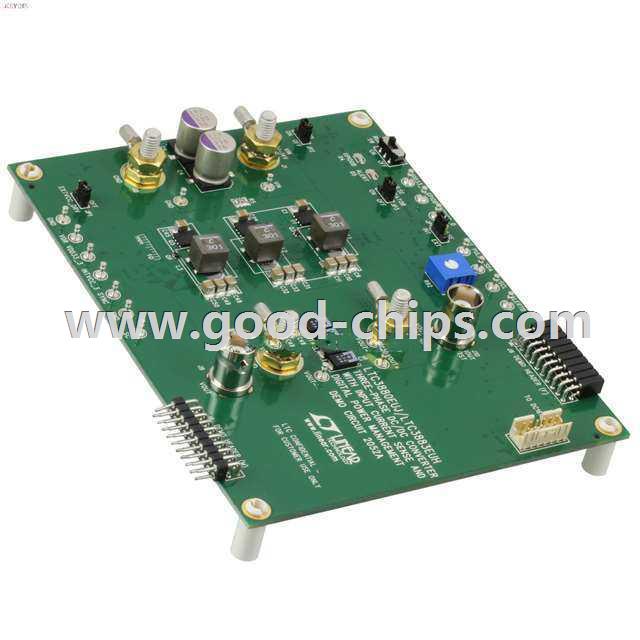

| Manufacturer Part Number: | DC2052A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9014 Pieces |
| Unit Price: | Quote by Email |
| Description: | LTC3880, LTC3883 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC2052A Datasheet |
| Internal Part Number | 898-DC2052A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Software Download | LTpowerPlay | |
| Design Resources | DC2052A Design Files DC2052A Schematic Development Tool Selector | |
| Online Catalog | LTC3880EUJ and LTC3883EUH Demonstration Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Down | |
| Outputs and Type | 1, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 1V | |
| Current - Output | 60A | |
| Voltage - Input | 6.5 V ~ 14 V | |
| Regulator Topology | Buck | |
| Frequency - Switching | 350kHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | LTC3880, LTC3883 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC2052A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC2052A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC2052A is new and unused, you can buy DC2052A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC2052A.
