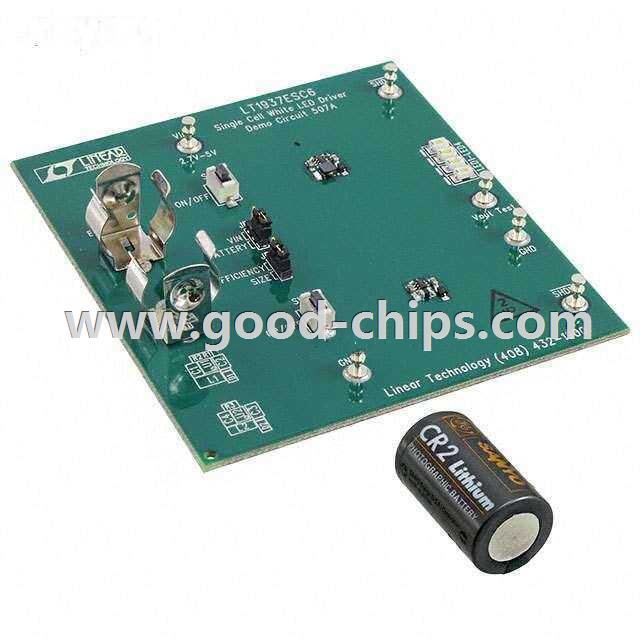

| Manufacturer Part Number: | DC507A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - LED Drivers |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |
| Description: | LT1937 1, Non-Isolated Output LED Driver Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC507A Datasheet |
| Internal Part Number | 898-DC507A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | DC507A Design File DC507A Schematic Development Tool Selector Lighting Product Selector | |
| Reference Design Library | DC507A: 12mA @ 13V Max, 2.7 ~ 5V in, Boost | |
| Online Catalog | LT1937 Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - LED Drivers | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Current - Output / Channel | - | |
| Outputs and Type | 1, Non-Isolated | |
| Voltage - Output | 13V | |
| Features | Dimmable | |
| Voltage - Input | 2.7 V ~ 5 V | |
| Supplied Contents | Board | |
| Utilized IC / Part | LT1937 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC507A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC507A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC507A is new and unused, you can buy DC507A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC507A.
