Manufacturer Part Number: | DC871A-C |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation Boards - LED Drivers |
Available Quantity: | 9012 Pieces |
Unit Price: | Quote by Email |

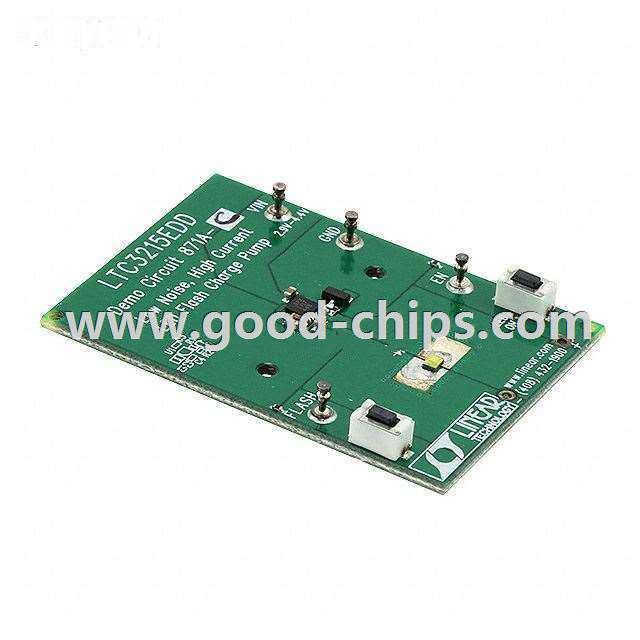

Description: | LTC3215 1, Non-Isolated Output LED Driver Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC871A-C Datasheet |
Internal Part Number | 898-DC871A-C | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | DC871A Design File DC871A Schematic Development Tool Selector Lighting Product Selector | |
Reference Design Library | DC871A-C: 700mA @ 5.1V Max, 2.9 ~ 4.4V in | |
Online Catalog | LTC3215 Evaluation Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - LED Drivers | |
Manufacturer | Linear Technology | |
Series | - | |
Part Status | Active | |
Current - Output / Channel | 150mA | |
Outputs and Type | 1, Non-Isolated | |
Voltage - Output | - | |
Features | - | |
Voltage - Input | 2.9 V ~ 4.4 V | |
Supplied Contents | Board | |
Utilized IC / Part | LTC3215 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC871A-C | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC871A-C is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC871A-C is new and unused, you can buy DC871A-C Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC871A-C.
