Manufacturer Part Number: | DC878A |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
Available Quantity: | 9012 Pieces |
Unit Price: | Quote by Email |

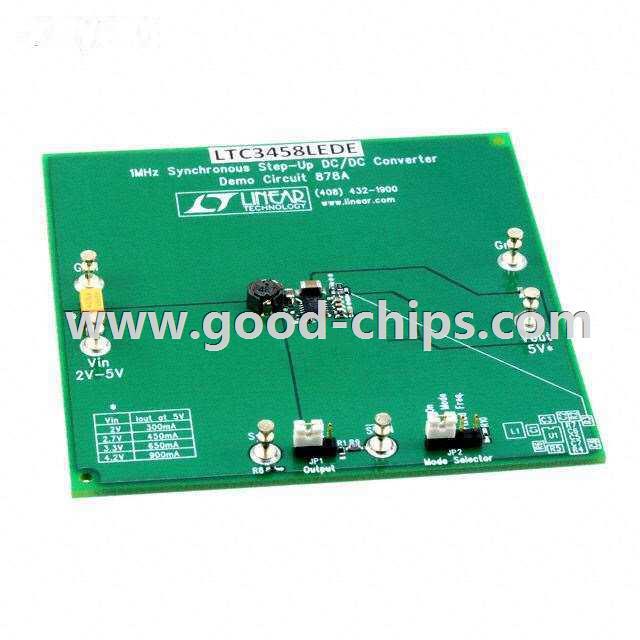

Description: | LTC3458L - DC/DC, Step Up 1, Non-Isolated Outputs Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC878A Datasheet |
Internal Part Number | 898-DC878A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Software Download | LTspice IV for Windows LTspice IV for Mac OS X 10.7+ LTC3458L Demo Circuit | |
Design Resources | DC878A Design File DC878A Schematic Development Tool Selector | |
Online Catalog | LTC3458L Demonstration Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
Manufacturer | Linear Technology | |
Series | - | |
Part Status | Active | |
Main Purpose | DC/DC, Step Up | |
Outputs and Type | 1, Non-Isolated | |
Power - Output | - | |
Voltage - Output | 5V | |
Current - Output | 900mA | |
Voltage - Input | 2 V ~ 5 V | |
Regulator Topology | Boost | |
Frequency - Switching | 1MHz | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | LTC3458L | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC878A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC878A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC878A is new and unused, you can buy DC878A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC878A.
