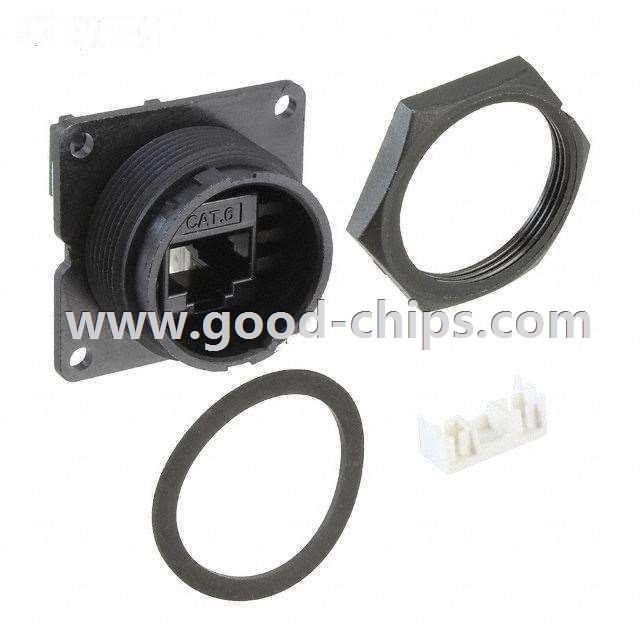

| Manufacturer Part Number: | DCP-RJ6B-RD |
|---|---|
| Manufacturer: | Switchcraft Inc. |
| Product Category: | Modular Connectors - Jacks |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded Cat6 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DCP-RJ6B-RD Datasheet |
| Internal Part Number | 898-DCP-RJ6B-RD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | RD and SD Series | |
| Category | Connectors, Interconnects | |
| Family | Modular Connectors - Jacks | |
| Manufacturer | Conxall/Switchcraft | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Jack | |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Mounting Type | Panel Mount, Flange | |
| Orientation | 90° Angle (Right) | |
| Termination | IDC | |
| Shielding | Unshielded | |
| Ratings | Cat6 | |
| Features | Quick Connect | |
| LED Color | Does Not Contain LED | |
| Ingress Protection | IP67/68 - Dust Tight, Waterproof | |
| Tab Direction | Down | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Housing Material | Thermoplastic | |
| Operating Temperature | -10°C ~ 60°C | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DCP-RJ6B-RD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DCP-RJ6B-RD is in stock for immediate shipping now. We are the distributor of Switchcraft Inc. all series components. The condition of DCP-RJ6B-RD is new and unused, you can buy DCP-RJ6B-RD Switchcraft Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DCP-RJ6B-RD.
