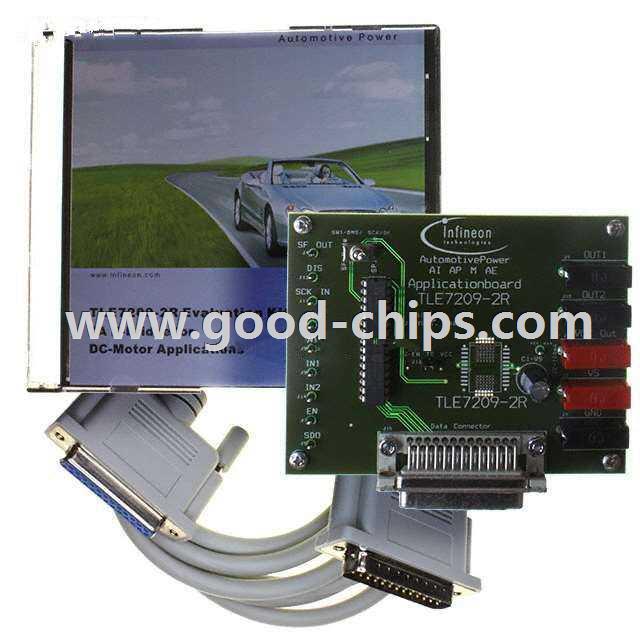

Manufacturer Part Number: | DEMOBOARD TLE 7209-2R |
---|---|
Manufacturer: | Infineon Technologies |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | TLE7209-2R - Power Management, Motor Control Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DEMOBOARD TLE 7209-2R Datasheet |
Internal Part Number | 898-DEMOBOARD TLE 7209-2R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Infineon Technologies | |
Series | - | |
Part Status | Obsolete | |
Main Purpose | Power Management, Motor Control | |
Embedded | No | |
Utilized IC / Part | TLE7209-2R | |
Primary Attributes | 1 H-Bridge Driver | |
Secondary Attributes | Short-Circuit, Thermal and Undervoltage Protection | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DEMOBOARD TLE 7209-2R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DEMOBOARD TLE 7209-2R is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of DEMOBOARD TLE 7209-2R is new and unused, you can buy DEMOBOARD TLE 7209-2R Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DEMOBOARD TLE 7209-2R.
