Manufacturer Part Number: | DF13-3P-1.25DSA(20) |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

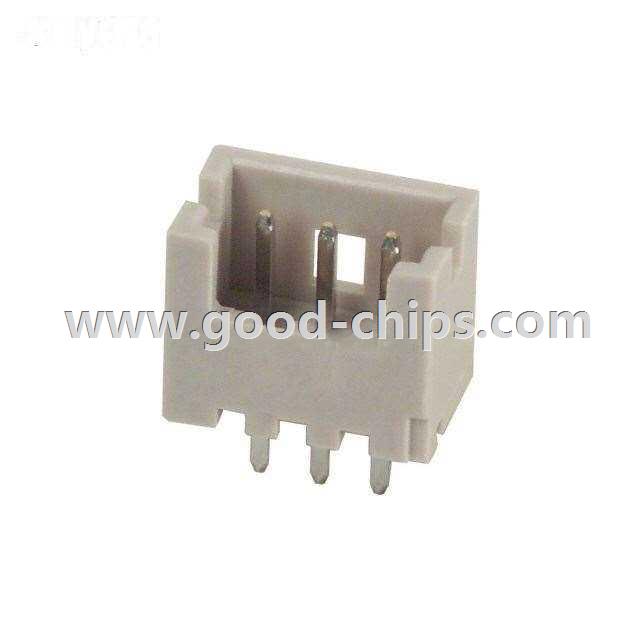

Description: | 3 Positions Header, Shrouded Connector 0.049" (1.25mm) Through Hole Tin |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DF13-3P-1.25DSA(20) Datasheet |
Internal Part Number | 898-DF13-3P-1.25DSA(20) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Wire-to-Board Connector | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | Hirose Electric Co Ltd | |
Series | DF13 | |
Packaging | Tube | |
Part Status | Active | |
Contact Type | Male Pin | |
Connector Type | Header, Shrouded | |
Number of Positions | 3 | |
Number of Positions Loaded | All | |
Pitch | 0.049" (1.25mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Contact Mating Length | - | |
Mounting Type | Through Hole | |
Termination | Solder | |
Fastening Type | - | |
Features | Board Guide | |
Contact Finish | Tin | |
Contact Finish Thickness | - | |
Color | Beige | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DF13-3P-1.25DSA(20) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DF13-3P-1.25DSA(20) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of DF13-3P-1.25DSA(20) is new and unused, you can buy DF13-3P-1.25DSA(20) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DF13-3P-1.25DSA(20).
