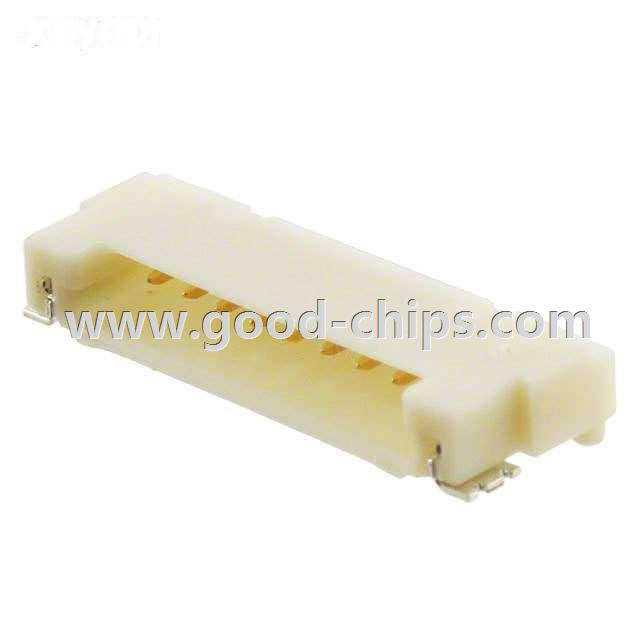

| Manufacturer Part Number: | DF14-9P-1.25H(56) |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 9 Positions Header, Shrouded Connector 0.049" (1.25mm) Surface Mount, Right Angle Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DF14-9P-1.25H(56) Datasheet |
| Internal Part Number | 898-DF14-9P-1.25H(56) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Wire-to-Board Connector | |
| Featured Product | DF14 Series | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | DF14 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | DF14 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 9 | |
| Number of Positions Loaded | All | |
| Pitch | 0.049" (1.25mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Contact Mating Length | - | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | Board Guide | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Color | Beige | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DF14-9P-1.25H(56) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DF14-9P-1.25H(56) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of DF14-9P-1.25H(56) is new and unused, you can buy DF14-9P-1.25H(56) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DF14-9P-1.25H(56).
