| Manufacturer Part Number: | DG2503DB-T2-GE1 |
|---|---|
| Manufacturer: | Vishay Siliconix |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4 Circuit IC Switch 1:1 8 Ohm 16-WCSP (1.44x1.44) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DG2503DB-T2-GE1 Datasheet |
| Internal Part Number | 898-DG2503DB-T2-GE1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | DG2501/DG2502/DG2503 Monolithic Quad SPST Analog Switches | |
| Online Catalog | Switch | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Vishay Siliconix | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Circuit | SPST - NO/NC | |
| Multiplexer/Demultiplexer Circuit | 1:1 | |
| Number of Circuits | 4 | |
| On-State Resistance (Max) | 8 Ohm | |
| Channel-to-Channel Matching (ΔRon) | - | |
| Voltage - Supply, Single (V+) | 1.8 V ~ 5.5 V | |
| Voltage - Supply, Dual (V±) | - | |
| Switch Time (Ton, Toff) (Max) | 100ns, 60ns | |
| -3db Bandwidth | 550MHz | |
| Charge Injection | -2pC | |
| Channel Capacitance (CS(off), CD(off)) | 2.9pF, 2.8pF | |
| Current - Leakage (IS(off)) (Max) | 400pA | |
| Crosstalk | -83dB @ 1MHz | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

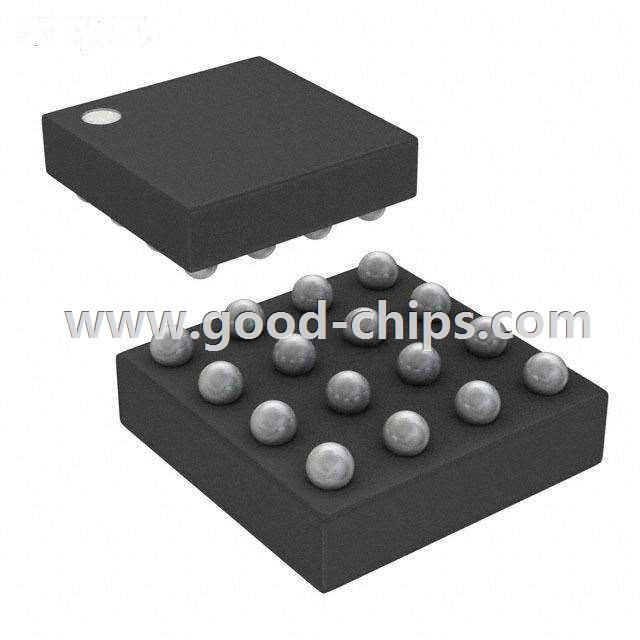

| Package / Case | 16-XFBGA, WLCSP | |
| Supplier Device Package | 16-WCSP (1.44x1.44) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DG2503DB-T2-GE1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DG2503DB-T2-GE1 is in stock for immediate shipping now. We are the distributor of Vishay Siliconix all series components. The condition of DG2503DB-T2-GE1 is new and unused, you can buy DG2503DB-T2-GE1 Vishay Siliconix with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DG2503DB-T2-GE1.
