| Manufacturer Part Number: | DGD2110S16-13 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | PMIC - Gate Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC GATE DRVR HALF-BRIDGE 16SO |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DGD2110S16-13 Datasheet |
| Internal Part Number | 898-DGD2110S16-13 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | DGD21 Gate Drivers | |
| Online Catalog | Half Bridge | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Gate Drivers | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Driven Configuration | Half-Bridge | |
| Channel Type | Independent | |
| Number of Drivers | 2 | |
| Gate Type | IGBT, N-Channel MOSFET | |
| Voltage - Supply | 10 V ~ 20 V | |
| Logic Voltage - VIL, VIH | 6V, 9.5V | |
| Current - Peak Output (Source, Sink) | 2.5A, 2.5A | |
| Input Type | Non-Inverting | |
| High Side Voltage - Max (Bootstrap) | 500V | |
| Rise / Fall Time (Typ) | 15ns, 13ns | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

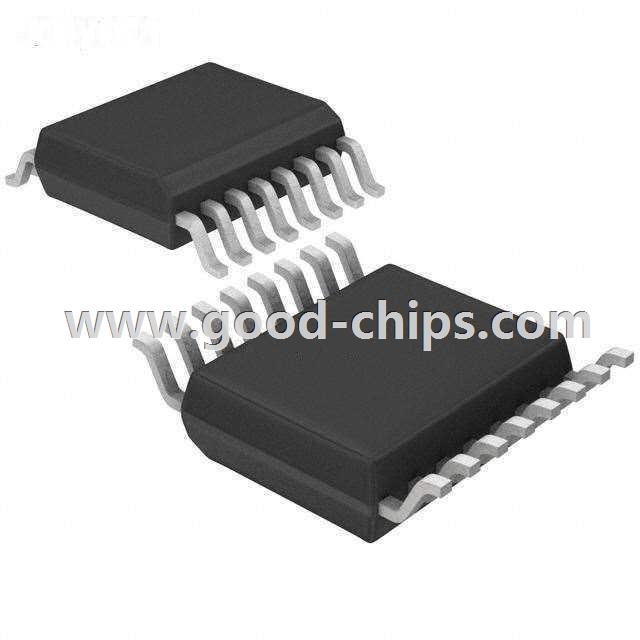

| Package / Case | 16-SOIC (0.295", 7.50mm Width) | |
| Supplier Device Package | 16-SO | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DGD2110S16-13 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DGD2110S16-13 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of DGD2110S16-13 is new and unused, you can buy DGD2110S16-13 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DGD2110S16-13.
