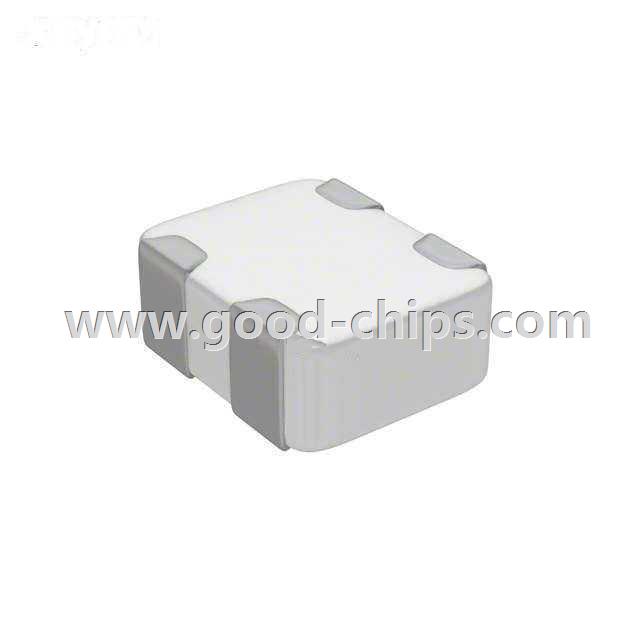

| Manufacturer Part Number: | DLM11GN601SD2D |
|---|---|
| Manufacturer: | Murata Electronics North America |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 19010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Line Common Mode Choke Surface Mount 600 Ohm @ 100MHz 100mA DCR 800 mOhm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DLM11GN601SD2D Datasheet |
| Internal Part Number | 898-DLM11GN601SD2D | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | EMIFIL® DLM11G Series | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | Murata Electronics North America | |
| Series | DLM11 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Signal Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | 600 Ohm @ 100MHz | |
| Inductance @ Frequency | - | |
| Current Rating (Max) | 100mA | |
| DC Resistance (DCR) (Max) | 800 mOhm | |
| Voltage Rating - DC | 5V | |
| Voltage Rating - AC | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.049" L x 0.039" W (1.25mm x 1.00mm) | |
| Height (Max) | 0.024" (0.60mm) | |
| Package / Case | 0504 (1210 Metric), 4 Lead | |
| Standard Package | 10,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DLM11GN601SD2D | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DLM11GN601SD2D is in stock for immediate shipping now. We are the distributor of Murata Electronics North America all series components. The condition of DLM11GN601SD2D is new and unused, you can buy DLM11GN601SD2D Murata Electronics North America with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DLM11GN601SD2D.
