| Manufacturer Part Number: | DM164120-1 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - Embedded - MCU, DSP |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

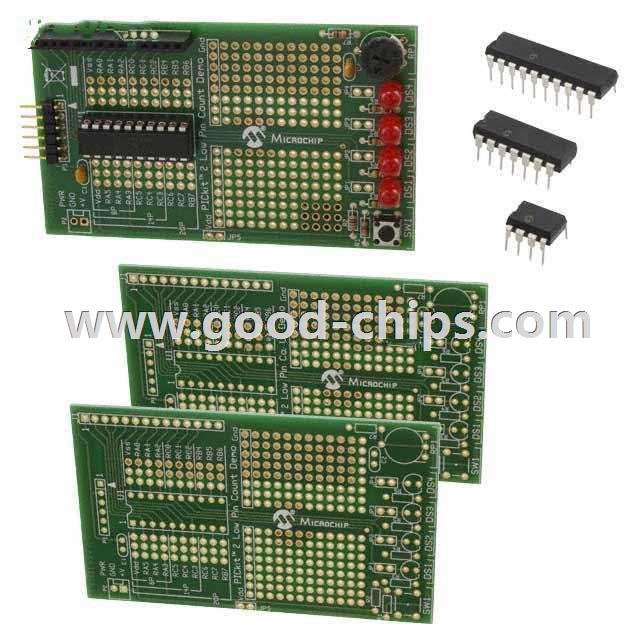

| Description: | PIC16C, PIC16F, PIC18C, PIC18F PICkit Low Pin Count Demo Board PIC® MCU 8-Bit PIC Embedded Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DM164120-1 Datasheet |
| Internal Part Number | 898-DM164120-1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Embedded - MCU, DSP | |
| Manufacturer | Microchip Technology | |
| Series | PIC® | |
| Part Status | Obsolete | |
| Board Type | Evaluation Platform | |
| Type | MCU 8-Bit | |
| Core Processor | PIC | |
| Operating System | - | |
| Platform | PICkit Low Pin Count Demo Board | |
| For Use With/Related Products | PIC16C, PIC16F, PIC18C, PIC18F | |
| Mounting Type | Socket | |
| Contents | Board(s) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DM164120-1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DM164120-1 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DM164120-1 is new and unused, you can buy DM164120-1 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DM164120-1.
