| Manufacturer Part Number: | DM164128 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - Sensors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

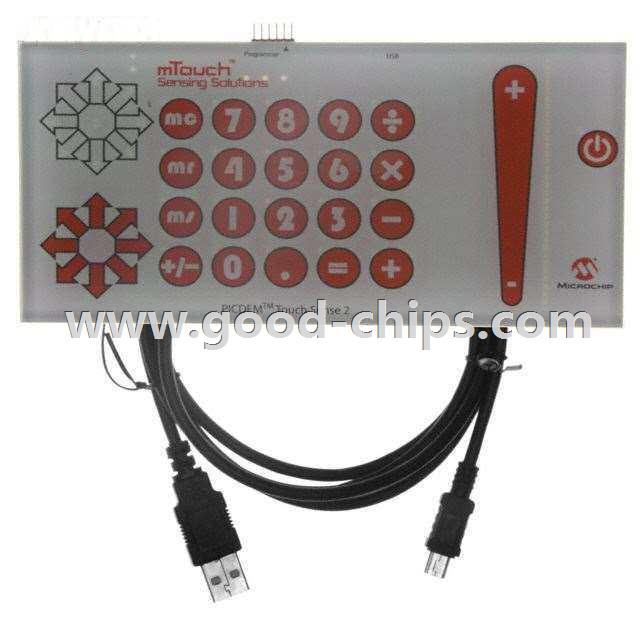

| Description: | PIC24F mTouch™ Touch, Capacitive Sensor Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DM164128 Datasheet |
| Internal Part Number | 898-DM164128 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | CTMU for Capacitive Touch Applications AN1250 | |
| Video File | PICDEM™ Touch Sense 2 Demo Board | |
| Software Download | PICDEM Touch Sense 2 Source Code PICDEM Touch Sense 2 Diagnostic Tool | |
| Design Resources | Development Tool Selector | |
| Reference Design Library | DM164128: 2 Capacitive Keypads & Slider Panel | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Sensors | |
| Manufacturer | Microchip Technology | |
| Series | mTouch™ | |
| Part Status | Obsolete | |
| Sensor Type | Touch, Capacitive | |
| Sensing Range | - | |
| Interface | Microprocessor | |
| Sensitivity | - | |
| Voltage - Supply | - | |
| Embedded | Yes, MCU, 16-Bit | |
| Supplied Contents | Board, Cable | |
| Utilized IC / Part | PIC24F | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DM164128 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DM164128 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DM164128 is new and unused, you can buy DM164128 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DM164128.
