Manufacturer Part Number: | DM240001 |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Evaluation Boards - Embedded - MCU, DSP |
Available Quantity: | 9079 Pieces |
Unit Price: | Quote by Email |

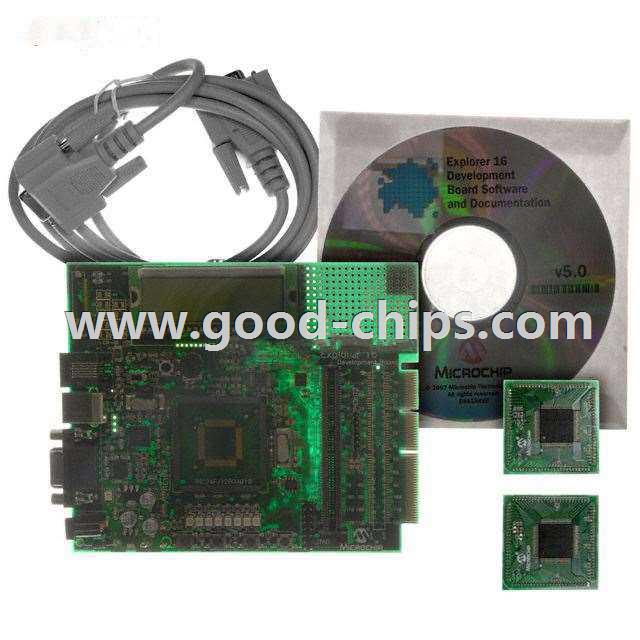

Description: | dsPIC30, dsPIC33, PIC32, PIC24FJ, PIC24H Explorer 16 Development Board (100-pin) dsPIC®, PIC® MCU 16-Bit Embedded Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DM240001 Datasheet |
Internal Part Number | 898-DM240001 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | PIC24 Introduction | |
Video File | PIC32 Board Selection | |
Design Resources | Development Tool Selector | |
Featured Product | SMPS and Digital Power Conversion Solutions AC164144 LCC Graphics PICtail Plus Daughter Board Dual Motor Control Made Easy with dsPIC33E DSCs RN1810 Wi-Fi PICtail™/PICtail™ Plus Daughter Board PIC32MM MCU Family | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
Online Catalog | PIC24 Evaluation Board DM240001, DM240002, and DV164037 | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Embedded - MCU, DSP | |
Manufacturer | Microchip Technology | |
Series | dsPIC®, PIC® | |
Part Status | Active | |
Board Type | Evaluation Platform | |
Type | MCU 16-Bit | |
Core Processor | - | |
Operating System | - | |
Platform | Explorer 16 Development Board (100-pin) | |
For Use With/Related Products | dsPIC30, dsPIC33, PIC32, PIC24FJ, PIC24H | |
Mounting Type | Socket | |
Contents | Board(s), Cable(s), LCD | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DM240001 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DM240001 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DM240001 is new and unused, you can buy DM240001 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DM240001.
