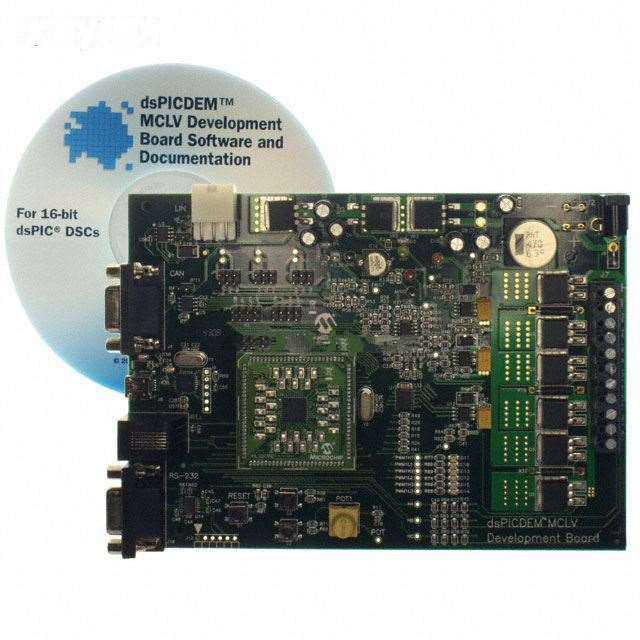

| Manufacturer Part Number: | DM330021 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | dsPIC33F dsPIC™ Series Power Management, Motor Control Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DM330021 Datasheet |
| Internal Part Number | 898-DM330021 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | DM330021 BOM, Gerber Files Development Tool Selector DM330021 Altium Build Files, Schematic, BOM | |
| Reference Design Library | DM330021: 240W 3-Phase Motor Controller, 0 ~ 48V | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Microchip Technology | |
| Series | dsPIC™ | |
| Part Status | Obsolete | |
| Main Purpose | Power Management, Motor Control | |
| Embedded | Yes, MCU, 16-Bit | |
| Utilized IC / Part | dsPIC33F | |
| Primary Attributes | 3-Ph BLDC or PMSM, 48V, 15A | |
| Secondary Attributes | CAN, LIN, USB, RS-232 Interfaces | |
| Supplied Contents | Board, Cable, CD, Screw Driver | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DM330021 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DM330021 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DM330021 is new and unused, you can buy DM330021 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DM330021.
