| Manufacturer Part Number: | DMG1016VQ-13 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N/P-CH 20V SOT563 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DMG1016VQ-13 Datasheet |
| Internal Part Number | 898-DMG1016VQ-13 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | N and P-Channel | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 20V | |
| Current - Continuous Drain (Id) @ 25°C | 870mA, 640mA | |
| Rds On (Max) @ Id, Vgs | 400 mOhm @ 600mA, 4.5V | |
| Vgs(th) (Max) @ Id | 1V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 0.74nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 60.67pF @ 16V | |
| Power - Max | 530mW | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

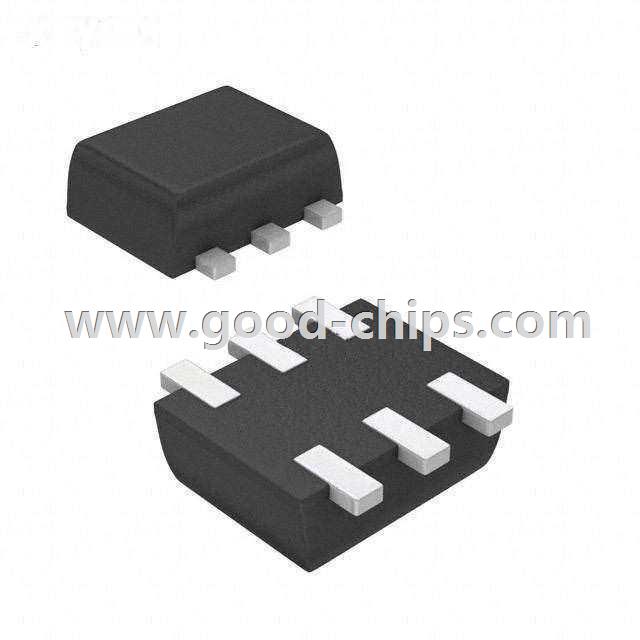

| Package / Case | SOT-563, SOT-666 | |
| Supplier Device Package | SOT-563 | |
| Standard Package | 10,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DMG1016VQ-13 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DMG1016VQ-13 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of DMG1016VQ-13 is new and unused, you can buy DMG1016VQ-13 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DMG1016VQ-13.
