Manufacturer Part Number: | DMP32D9UFZ-7B |
---|---|
Manufacturer: | Diodes Incorporated |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET P-CH 30V 0.2A X2-DFN0606 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DMP32D9UFZ-7B Datasheet |
Internal Part Number | 898-DMP32D9UFZ-7B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | DFN0606 Mini MOSFETs | |
Online Catalog | P-Channel Standard FETs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Diodes Incorporated | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
FET Type | MOSFET P-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 30V | |
Current - Continuous Drain (Id) @ 25°C | 200mA (Ta) | |
Rds On (Max) @ Id, Vgs | 5 Ohm @ 100mA, 4.5V | |
Vgs(th) (Max) @ Id | 1V @ 250µA | |
Gate Charge (Qg) @ Vgs | 0.35nC @ 4.5V | |
Input Capacitance (Ciss) @ Vds | 22.5pF @ 15V | |
Power - Max | 390mW | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

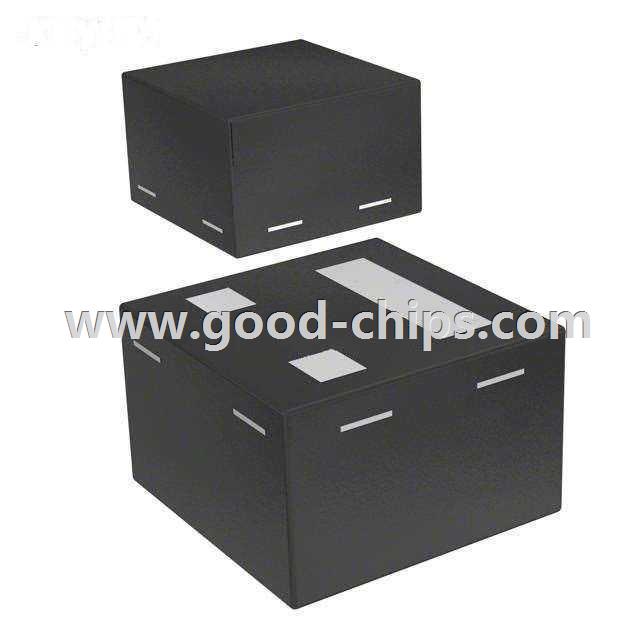

Package / Case | 3-XFDFN | |
Supplier Device Package | X2-DFN0606-3 | |
Standard Package | 10,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DMP32D9UFZ-7B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DMP32D9UFZ-7B is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of DMP32D9UFZ-7B is new and unused, you can buy DMP32D9UFZ-7B Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DMP32D9UFZ-7B.
