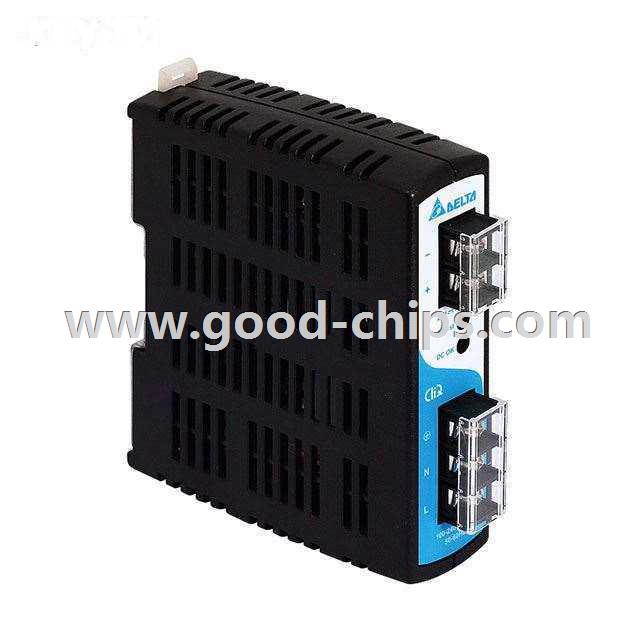

| Manufacturer Part Number: | DRP024V060W1AZ |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | AC DC Converters |
| Available Quantity: | 9179 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 24V 60W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DRP024V060W1AZ Datasheet |
| Internal Part Number | 898-DRP024V060W1AZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | D0116888 CB Test Cert DRP024V060W1Ax EC Declaration of Conformity DRP024VyyyW1Ay CSA Certificate DRP024V060W1Ax SIQ Cert Standard Power Supplies UL Cert | |
| Product Training Modules | CliQ and CliQ II Series: DIN Rail Power Supplies CliQ Series of DIN Rail Power Supplies | |
| Featured Product | CliQ Series DC/DC Converters – Delta Product Groups Power Management Solutions | |
| 3D Model | DRP024V060W1AZ.stp | |
| 2D Drawing | DRP024V060W1AZ.dxf | |
| Online Catalog | CliQ Series - 60W | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | Delta Electronics | |
| Series | CliQ | |
| Part Status | Active | |
| Type | Enclosed | |
| Number of Outputs | 1 | |
| Voltage - Input | 85 ~ 264 VAC | |
| Voltage - Output 1 | 24V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 2.5A | |
| Power (Watts) | 60W | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | 4kV (4000V) | |
| Efficiency | 87% | |
| Operating Temperature | -20°C ~ 75°C (With Derating) | |
| Features | Adjustable Output, DC Input Capable, Load Sharing, Universal Input | |
| Mounting Type | DIN Rail | |
| Size / Dimension | 4.75" L x 1.26" W x 4.45" H (120.6mm x 32.0mm x 113.0mm) | |
| Minimum Load Required | - | |
| Approvals | CB, cCSAus, CE, cULus, cURus | |
| Power (Watts) - Max | 60W | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DRP024V060W1AZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DRP024V060W1AZ is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of DRP024V060W1AZ is new and unused, you can buy DRP024V060W1AZ Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DRP024V060W1AZ.
