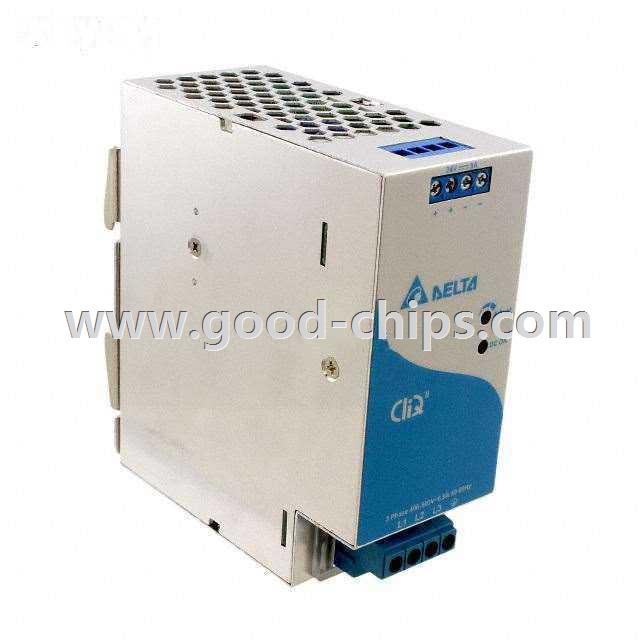

| Manufacturer Part Number: | DRP024V120W3BA |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | AC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 24V 120W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DRP024V120W3BA Datasheet |
| Internal Part Number | 898-DRP024V120W3BA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | DRP024VyyyW3By ATEX Cert DRP024VyyyW3By CB Test Cert DRP024V060/120W3Bx EC Declaration of Conformity DRP024VyyyW3By CSA Certificate DRP024V060/120W3Bx SIQ Cert Standard Power Supplies UL Cert | |
| Product Training Modules | CliQ and CliQ II Series: DIN Rail Power Supplies CliQ Series of DIN Rail Power Supplies | |
| Featured Product | DC/DC Converters – Delta Product Groups CliQ II Series Power Management Solutions | |
| 3D Model | DRP024V120W3Bx.stp | |
| 2D Drawing | DRP024V120W3Bx.dxf | |
| Online Catalog | CliQ II Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | Delta Electronics | |
| Series | CliQ II | |
| Part Status | Active | |
| Type | Enclosed | |
| Number of Outputs | 1 | |
| Voltage - Input | 320 ~ 600 VAC (3PH) | |
| Voltage - Output 1 | 24V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 5A | |
| Power (Watts) | 120W | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | 4kV (4000V) | |
| Efficiency | 88% | |
| Operating Temperature | -25°C ~ 80°C (With Derating) | |
| Features | Adjustable Output, DC Input Capable, IP20, Load Sharing, PFC, Universal Input | |
| Mounting Type | DIN Rail | |
| Size / Dimension | 4.62" L x 1.97" W x 4.76" H (117.3mm x 50.0mm x 121.0mm) | |
| Minimum Load Required | - | |
| Approvals | CB, cCSAus, CE, cULus, cURus | |
| Power (Watts) - Max | 120W | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DRP024V120W3BA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DRP024V120W3BA is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of DRP024V120W3BA is new and unused, you can buy DRP024V120W3BA Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DRP024V120W3BA.
