| Manufacturer Part Number: | DS80PCI810NJYT |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Interface - Signal Buffers, Repeaters, Splitters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buffer, ReDriver 8 Channel 8Gbps 54-WQFN (10x5.5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DS80PCI810NJYT Datasheet |
| Internal Part Number | 898-DS80PCI810NJYT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Analog Solutions for Xilinx FPGAs and CPLDs – Texas Instruments | DigiKey | |
| PCN Design/Specification | Copper Base Metal 16/Mar/2015 | |
| PCN Assembly/Origin | Copper Base Revision A 30/Jul/2015 Wafer Fabe Site Addition 24/Aug/2015 | |
| Manufacturer Product Page | DS80PCI810NJYT Specifications | |
| Online Catalog | Buffer, ReDriver | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Signal Buffers, Repeaters, Splitters | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Buffer, ReDriver | |
| Applications | PCI Express® | |
| Input | CML | |
| Output | CML | |
| Data Rate (Max) | 8Gbps | |
| Number of Channels | 8 | |
| Delay Time | 80ps | |
| Signal Conditioning | - | |
| Capacitance - Input | 5pF | |
| Voltage - Supply | 2.5 V ~ 3.3 V | |
| Current - Supply | 220mA | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | 55JT | |

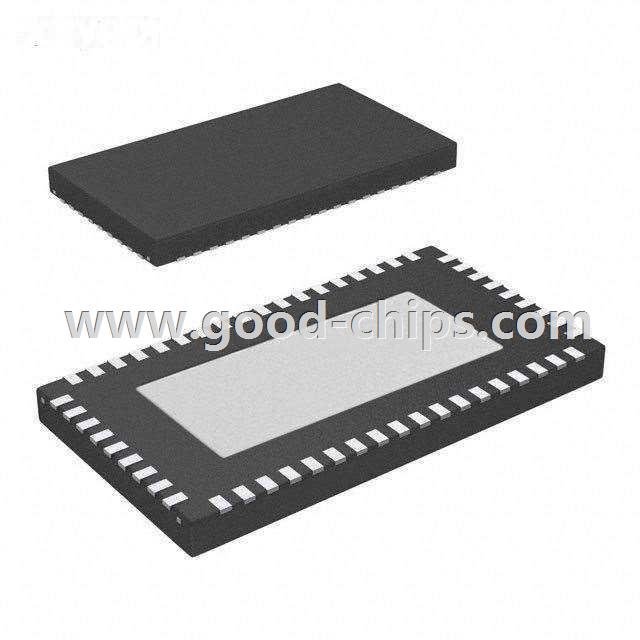

| Supplier Device Package | 54-WQFN (10x5.5) | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DS80PCI810NJYT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DS80PCI810NJYT is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of DS80PCI810NJYT is new and unused, you can buy DS80PCI810NJYT Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DS80PCI810NJYT.
