-7.00-mm-x-5.00-mm.jpg)
| Manufacturer Part Number: | DSC1124NL2-100.0000T |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Oscillators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 100MHz HCSL MEMS (Silicon) Oscillator Surface Mount 2.25 V ~ 3.6 V 42mA Enable/Disable |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DSC1124NL2-100.0000T Datasheet |
| Internal Part Number | 898-DSC1124NL2-100.0000T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Clock System Design High-Speed PECL and LVPECL Termination | |
| Category | Crystals and Oscillators | |
| Family | Oscillators | |
| Manufacturer | Microchip Technology | |
| Series | DSC1124 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | MEMS (Silicon) | |
| Frequency | 100MHz | |
| Function | Enable/Disable | |
| Output | HCSL | |
| Voltage - Supply | 2.25 V ~ 3.6 V | |
| Frequency Stability | ±25ppm | |
| Operating Temperature | -40°C ~ 105°C | |
| Current - Supply (Max) | 42mA | |
| Ratings | AEC-Q100 | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | |
| Height | 0.035" (0.90mm) | |

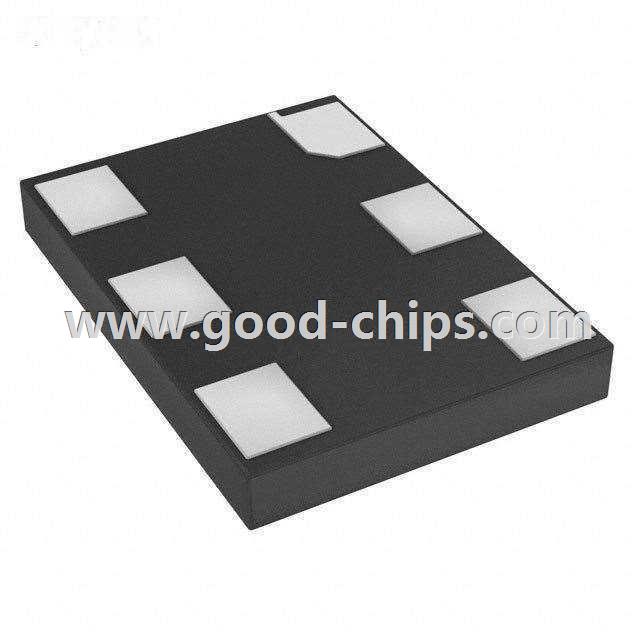

| Package / Case | 6-SMD, No Lead (DFN, LCC) | |
| Current - Supply (Disable) (Max) | 22mA | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DSC1124NL2-100.0000T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DSC1124NL2-100.0000T is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DSC1124NL2-100.0000T is new and unused, you can buy DSC1124NL2-100.0000T Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DSC1124NL2-100.0000T.
