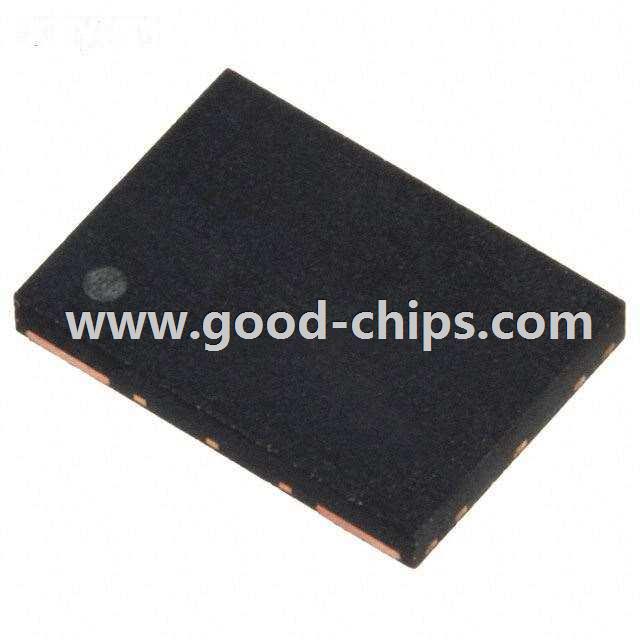

Manufacturer Part Number: | DSC8001AI1-PROGRAMMABLE |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Programmable Oscillators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 1MHz ~ 150MHz CMOS MEMS (Silicon) Programmable Oscillator Surface Mount 1.8 V ~ 3.3 V 12.2mA Standby |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DSC8001AI1-PROGRAMMABLE Datasheet |
Internal Part Number | 898-DSC8001AI1-PROGRAMMABLE | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | DSC8001 Series | |
Category | Crystals and Oscillators | |
Family | Programmable Oscillators | |
Manufacturer | Microchip Technology | |
Series | DSC8001 | |
Packaging | Tube | |
Part Status | Active | |
Type | MEMS (Silicon) | |
Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | |
Available Frequency Range | 1MHz ~ 150MHz | |
Function | Standby | |
Output | CMOS | |
Voltage - Supply | 1.8 V ~ 3.3 V | |
Frequency Stability | - | |
Frequency Stability (Total) | ±50ppm | |
Operating Temperature | -40°C ~ 85°C | |
Spread Spectrum Bandwidth | - | |
Current - Supply (Max) | 12.2mA | |
Ratings | AEC-Q100 | |
Mounting Type | Surface Mount | |
Package / Case | 4-SMD, No Lead (DFN, LCC) | |
Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | |
Height | 0.035" (0.90mm) | |
Current - Supply (Disable) (Max) | 15µA | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DSC8001AI1-PROGRAMMABLE | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DSC8001AI1-PROGRAMMABLE is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DSC8001AI1-PROGRAMMABLE is new and unused, you can buy DSC8001AI1-PROGRAMMABLE Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DSC8001AI1-PROGRAMMABLE.
