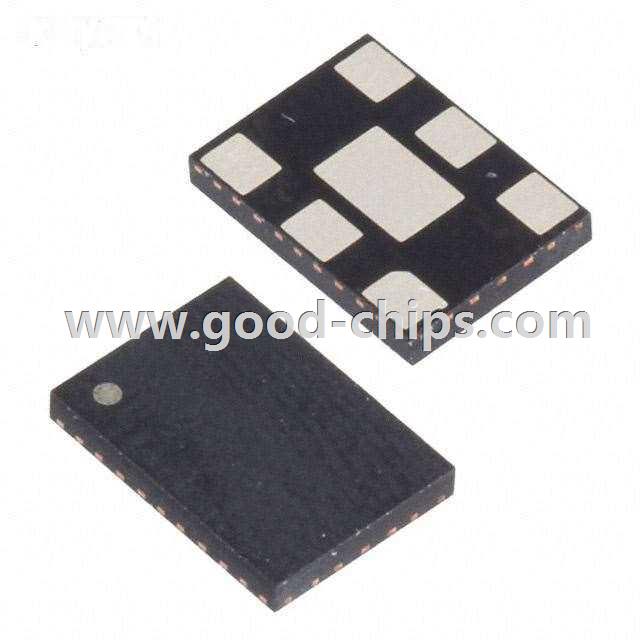

| Manufacturer Part Number: | DSC8104AI5-PROGRAMMABLE |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Programmable Oscillators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10MHz ~ 460MHz HCSL MEMS (Silicon) Programmable Oscillator Surface Mount 2.25 V ~ 3.6 V 42mA Standby |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DSC8104AI5-PROGRAMMABLE Datasheet |
| Internal Part Number | 898-DSC8104AI5-PROGRAMMABLE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | DSC8104 and DSC8124 Series | |
| Category | Crystals and Oscillators | |
| Family | Programmable Oscillators | |
| Manufacturer | Microchip Technology | |
| Series | DSC8104 | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | MEMS (Silicon) | |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | |
| Available Frequency Range | 10MHz ~ 460MHz | |
| Function | Standby | |
| Output | HCSL | |
| Voltage - Supply | 2.25 V ~ 3.6 V | |
| Frequency Stability | - | |
| Frequency Stability (Total) | ±10ppm | |
| Operating Temperature | -40°C ~ 85°C | |
| Spread Spectrum Bandwidth | - | |
| Current - Supply (Max) | 42mA | |
| Ratings | AEC-Q100 | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-SMD, No Lead (DFN, LCC) | |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | |
| Height | 0.035" (0.90mm) | |
| Current - Supply (Disable) (Max) | 95µA | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DSC8104AI5-PROGRAMMABLE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DSC8104AI5-PROGRAMMABLE is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DSC8104AI5-PROGRAMMABLE is new and unused, you can buy DSC8104AI5-PROGRAMMABLE Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DSC8104AI5-PROGRAMMABLE.
