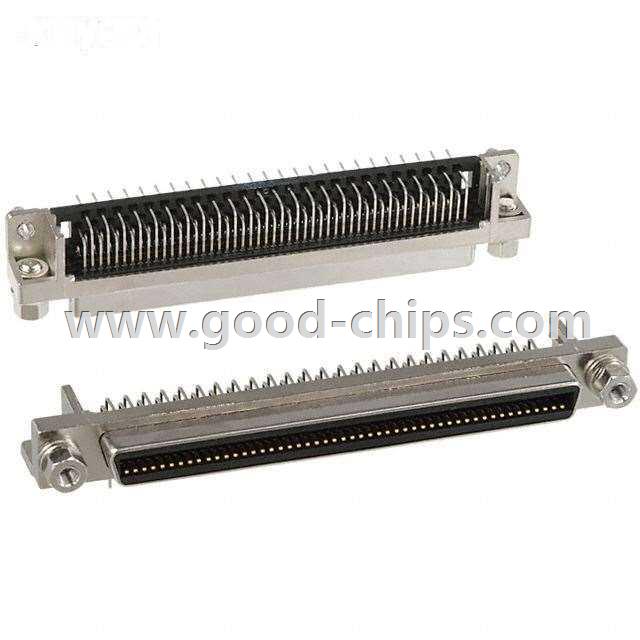

Manufacturer Part Number: | DX10BM-100SE(50) |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | D-Shaped Connectors - Centronics |
Available Quantity: | 9017 Pieces |
Unit Price: | Quote by Email |
Description: | 100 Position Receptacle Connector Miniature High Density (HD) Panel Mount, Through Hole, Right Angle Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DX10BM-100SE(50) Datasheet |
Internal Part Number | 898-DX10BM-100SE(50) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | DXM Series | |
Category | Connectors, Interconnects | |
Family | D-Shaped Connectors - Centronics | |
Manufacturer | Hirose Electric Co Ltd | |
Series | DXM | |
Part Status | Active | |
Connector Style | Outer Shroud Contacts | |
Connector Type | Receptacle | |
Number of Positions | 100 | |
Number of Rows | 2 | |
Mounting Type | Panel Mount, Through Hole, Right Angle | |
Termination | Solder | |
Flange Feature | Mating Side, Female Screwlock (M2.6) | |
Type | Miniature High Density (HD) | |
Features | Board Lock | |
Contact Finish | Gold | |
Contact Finish Thickness | - | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DX10BM-100SE(50) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DX10BM-100SE(50) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of DX10BM-100SE(50) is new and unused, you can buy DX10BM-100SE(50) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DX10BM-100SE(50).
