| Manufacturer Part Number: | DZ2W03900L |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | Diodes - Zener - Single |
| Available Quantity: | 18010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Zener Diode 3.9V 1W ±5% Surface Mount Mini2-F3-B |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DZ2W03900L Datasheet |
| Internal Part Number | 898-DZ2W03900L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Zener Diodes | |
| Featured Product | Wearables Technology Components | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Silicon Epitaxial Planar Type Zener Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Zener - Single | |
| Manufacturer | Panasonic Electronic Components | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Voltage - Zener (Nom) (Vz) | 3.9V | |
| Tolerance | ±5% | |
| Power - Max | 1W | |
| Impedance (Max) (Zzt) | 80 Ohm | |
| Current - Reverse Leakage @ Vr | 60µA @ 1V | |
| Voltage - Forward (Vf) (Max) @ If | 1.2V @ 200mA | |
| Operating Temperature | - | |
| Mounting Type | Surface Mount | |

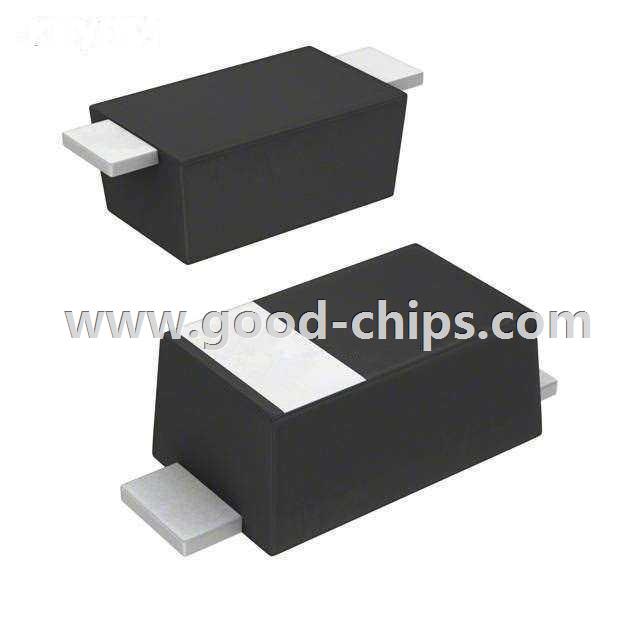

| Package / Case | SOD-123F | |
| Supplier Device Package | Mini2-F3-B | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DZ2W03900L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DZ2W03900L is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of DZ2W03900L is new and unused, you can buy DZ2W03900L Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DZ2W03900L.
