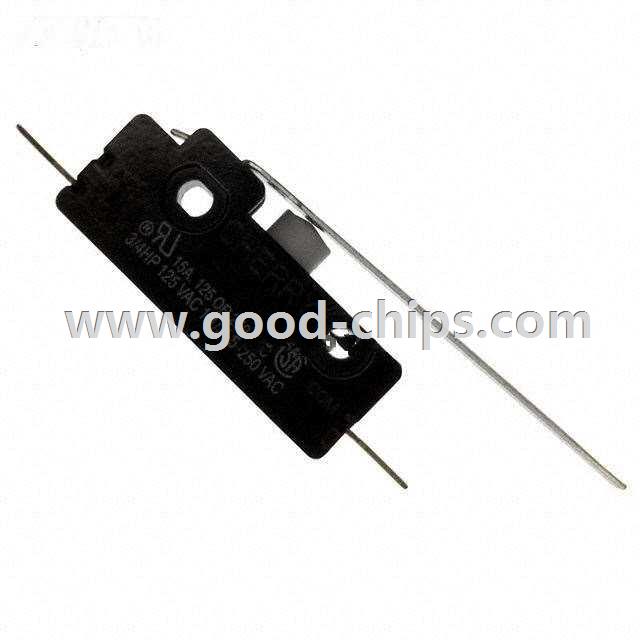

| Manufacturer Part Number: | E13-01H |
|---|---|
| Manufacturer: | Cherry |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACT SPST-NO 15A 125V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | E13-01H Datasheet |
| Internal Part Number | 898-E13-01H | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | Cherry | |
| Series | E | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Current Rating | 15A (AC), 2A (DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 48V | |
| Actuator Type | Lever, Straight | |
| Mounting Type | Chassis Mount | |
| Termination Style | Quick Connect - 0.250" (6.3mm) | |
| Ingress Protection | - | |
| Features | - | |
| Operating Force, Torque | 100gf | |
| Release Force | - | |
| Pretravel | 0.250" (6.35mm) | |
| Differential Travel | 0.093" (2.36mm) | |
| Overtravel | 0.187" (4.75mm) | |
| Operating Position | 0.312" (7.9mm) | |
| Mechanical Life | - | |
| Electrical Life | 6,000 Cycles | |
| Operating Temperature | -40°C ~ 105°C | |
| Standard Package | 1,008 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | E13-01H | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
E13-01H is in stock for immediate shipping now. We are the distributor of Cherry all series components. The condition of E13-01H is new and unused, you can buy E13-01H Cherry with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for E13-01H.
