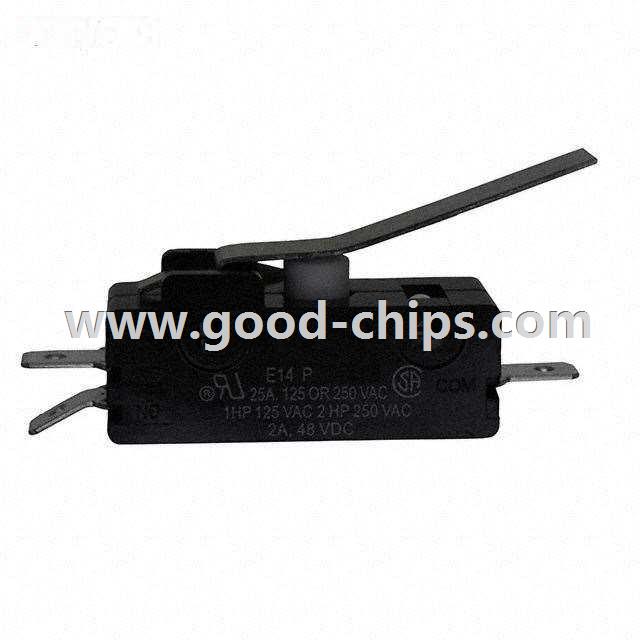

| Manufacturer Part Number: | E14-00H |
|---|---|
| Manufacturer: | Cherry |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACTION SPDT 25A 125V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | E14-00H Datasheet |
| Internal Part Number | 898-E14-00H | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | Cherry | |
| Series | E | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 25A (AC), 2A (DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 48V | |
| Actuator Type | Lever, Straight | |
| Mounting Type | Chassis Mount | |
| Termination Style | Quick Connect - 0.250" (6.3mm) | |
| Ingress Protection | - | |
| Features | - | |
| Operating Force, Torque | 285gf | |
| Release Force | - | |
| Pretravel | 0.310" (7.9mm) | |
| Differential Travel | 0.050" (1.3mm) | |
| Overtravel | 0.105" (2.67mm) | |
| Operating Position | 0.468" (11.9mm) | |
| Mechanical Life | - | |
| Electrical Life | 6,000 Cycles | |
| Operating Temperature | -40°C ~ 105°C | |
| Standard Package | 1,008 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | E14-00H | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
E14-00H is in stock for immediate shipping now. We are the distributor of Cherry all series components. The condition of E14-00H is new and unused, you can buy E14-00H Cherry with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for E14-00H.
