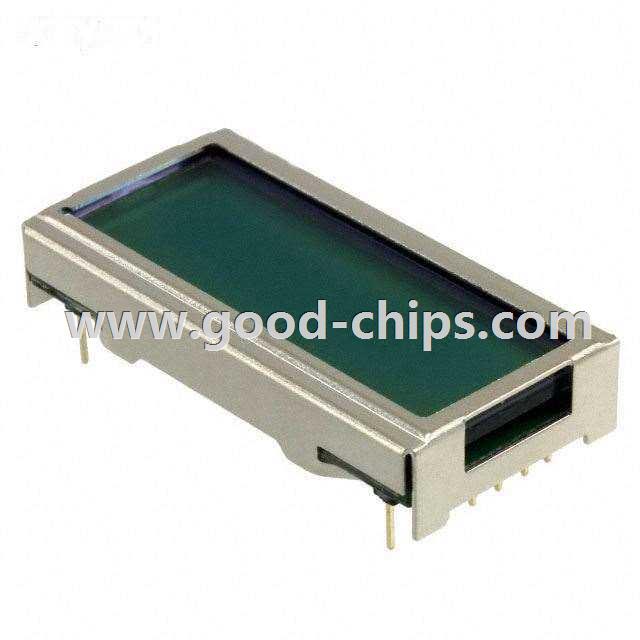

| Manufacturer Part Number: | EA DIPS082-HN |
|---|---|
| Manufacturer: | Electronic Assembly GmbH |
| Product Category: | Display Modules - LCD, OLED Character and Numeric |
| Available Quantity: | 9045 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LCD Display Module Reflective 5 x 8 Dots STN - Super-Twisted Nematic Without Backlight Parallel, 8-Bit 40.00mm x 20.00mm x 7.80mm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EA DIPS082-HN Datasheet |
| Internal Part Number | 898-EA DIPS082-HN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | LCD-Module 1x8 and 2x8 | |
| Category | Optoelectronics | |
| Family | Display Modules - LCD, OLED Character and Numeric | |
| Manufacturer | Electronic Assembly GmbH | |
| Series | - | |
| Part Status | Active | |
| Number of Characters | 16 | |
| Display Format | 8 x 2 | |
| Character Format | 5 x 8 Dots | |
| Display Type | STN - Super-Twisted Nematic | |
| Display Mode | Reflective | |
| Character Size | 5.01mm H x 3.12mm W | |
| Outline L x W x H | 40.00mm x 20.00mm x 7.80mm | |
| Viewing Area | 36.30mm L x 13.90mm W | |
| Backlight | Without Backlight | |
| Voltage - Supply | 5V | |
| Dot Size | 0.60mm W x 0.60mm H | |
| Interface | Parallel, 8-Bit | |
| Operating Temperature | -20°C ~ 70°C | |
| Text Color | Black | |
| Background Color | Gray | |
| Standard Package | 32 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EA DIPS082-HN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EA DIPS082-HN is in stock for immediate shipping now. We are the distributor of Electronic Assembly GmbH all series components. The condition of EA DIPS082-HN is new and unused, you can buy EA DIPS082-HN Electronic Assembly GmbH with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EA DIPS082-HN.
