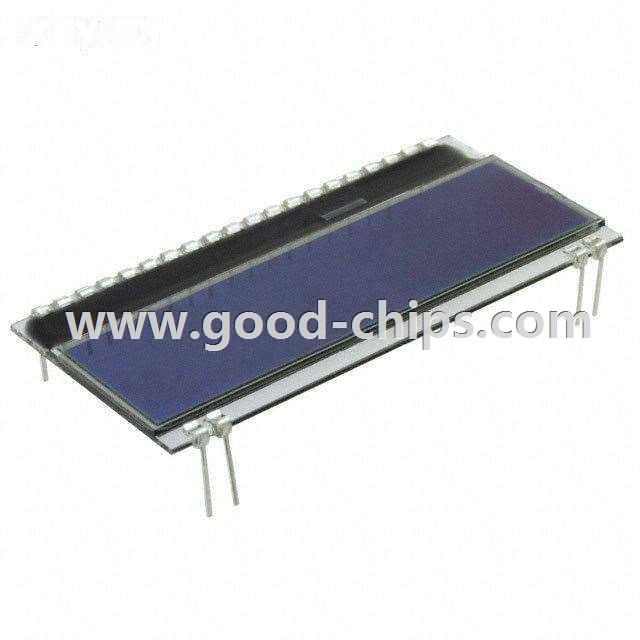

| Manufacturer Part Number: | EA DOGM081S-A |
|---|---|
| Manufacturer: | Electronic Assembly GmbH |
| Product Category: | Display Modules - LCD, OLED Character and Numeric |
| Available Quantity: | 9147 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LCD Display Module Transmissive 5 x 8 Dots FSTN - Film Super-Twisted Nematic Without Backlight Parallel, 8-Bit, SPI 55.00mm x 27.94mm x 2.00mm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EA DOGM081S-A Datasheet |
| Internal Part Number | 898-EA DOGM081S-A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | EA DOG Series | |
| Category | Optoelectronics | |
| Family | Display Modules - LCD, OLED Character and Numeric | |
| Manufacturer | Electronic Assembly GmbH | |
| Series | EA DOG | |
| Part Status | Active | |
| Number of Characters | 8 | |
| Display Format | 8 x 1 | |
| Character Format | 5 x 8 Dots | |
| Display Type | FSTN - Film Super-Twisted Nematic | |
| Display Mode | Transmissive | |
| Character Size | 11.97mm H x 4.97mm W | |
| Outline L x W x H | 55.00mm x 27.94mm x 2.00mm | |
| Viewing Area | 51.00mm L x 14.50mm W | |
| Backlight | Without Backlight | |
| Voltage - Supply | 3.3V | |
| Dot Size | 0.97mm W x 1.47mm H | |
| Interface | Parallel, 8-Bit, SPI | |
| Operating Temperature | -20°C ~ 70°C | |
| Text Color | White | |
| Background Color | Black | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EA DOGM081S-A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EA DOGM081S-A is in stock for immediate shipping now. We are the distributor of Electronic Assembly GmbH all series components. The condition of EA DOGM081S-A is new and unused, you can buy EA DOGM081S-A Electronic Assembly GmbH with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EA DOGM081S-A.
