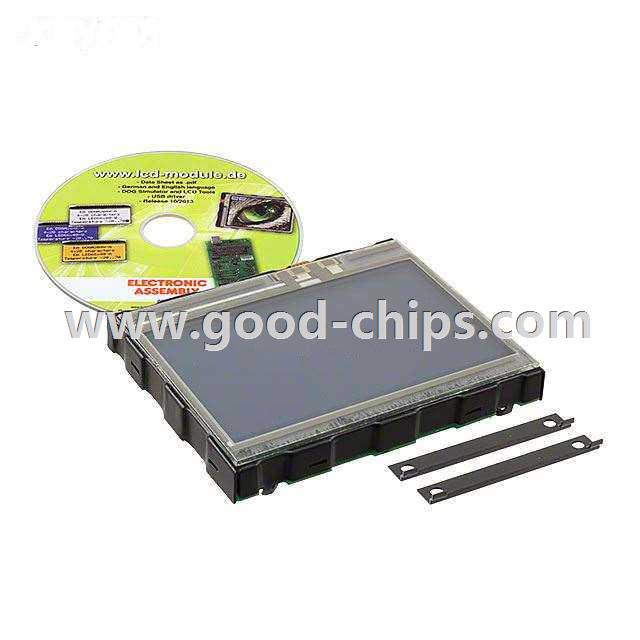

| Manufacturer Part Number: | EA EDIP160B-7LWTP |
|---|---|
| Manufacturer: | Electronic Assembly GmbH |
| Product Category: | Display Modules - LCD, OLED, Graphic |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |
| Description: | Resistive Graphic LCD Display Module Transmissive White STN - Super-Twisted Nematic I²C, RS-232, SPI 160 x 104 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EA EDIP160B-7LWTP Datasheet |
| Internal Part Number | 898-EA EDIP160B-7LWTP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | EA EDIP Series | |
| Category | Optoelectronics | |
| Family | Display Modules - LCD, OLED, Graphic | |
| Manufacturer | Electronic Assembly GmbH | |
| Series | EA eDIP | |
| Part Status | Active | |
| Display Type | STN - Super-Twisted Nematic | |
| Display Mode | Transmissive | |
| Touchscreen | Resistive | |
| Diagonal Screen Size | - | |
| Viewing Area | 74.00mm W x 45.90mm H | |
| Backlight | LED - White | |
| Dot Pixels | 160 x 104 | |
| Interface | I²C, RS-232, SPI | |
| Graphics Color | White | |
| Background Color | Blue | |
| Dot Size | 0.42mm W x 0.40mm H | |
| Dot Pitch | 0.43mm W x 0.41mm H | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EA EDIP160B-7LWTP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EA EDIP160B-7LWTP is in stock for immediate shipping now. We are the distributor of Electronic Assembly GmbH all series components. The condition of EA EDIP160B-7LWTP is new and unused, you can buy EA EDIP160B-7LWTP Electronic Assembly GmbH with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EA EDIP160B-7LWTP.
