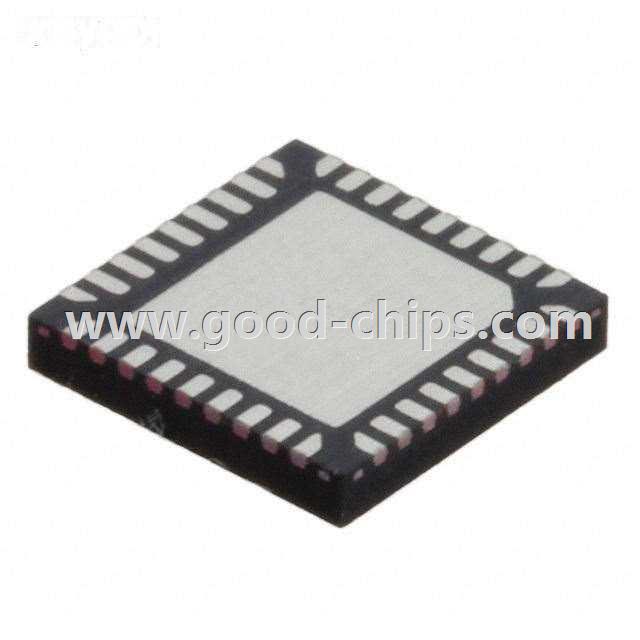

| Manufacturer Part Number: | EC2630QI |
|---|---|
| Manufacturer: | Altera |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Charge Pump Switching Regulator IC Positive Fixed Vin/2 1 Output 4.5A 36-VFQFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EC2630QI Datasheet |
| Internal Part Number | 898-EC2630QI | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Packaging | Label Chg 15/Jan/2016 | |
| Online Catalog | Charge Pump | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Altera | |
| Series | Enpirion® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Ratiometric | |
| Output Configuration | Positive | |
| Topology | Charge Pump | |
| Output Type | Fixed | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 8V | |
| Voltage - Input (Max) | 13.2V | |
| Voltage - Output (Min/Fixed) | Vin/2 | |
| Voltage - Output (Max) | - | |
| Current - Output | 4.5A | |
| Frequency - Switching | 115kHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 36-VFQFN Exposed Pad | |
| Supplier Device Package | 36-QFN (5x6) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EC2630QI | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EC2630QI is in stock for immediate shipping now. We are the distributor of Altera all series components. The condition of EC2630QI is new and unused, you can buy EC2630QI Altera with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EC2630QI.
