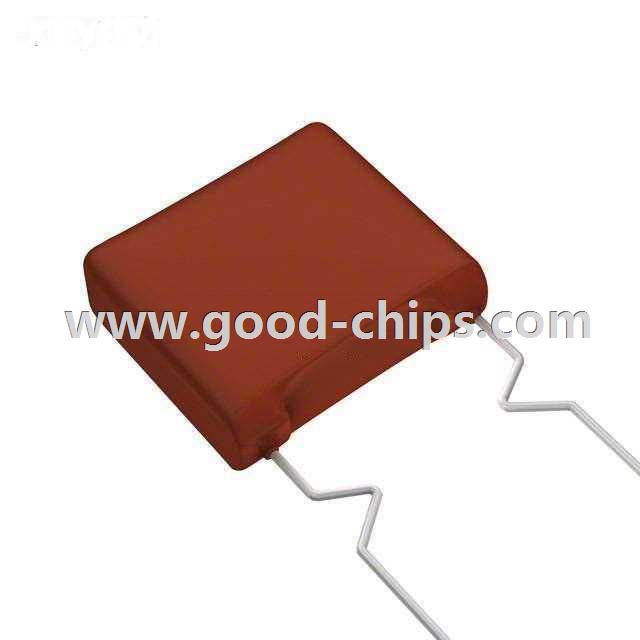

 Series Style D 18x6.jpg)
| Manufacturer Part Number: | ECW-F2564HAQ |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | Film Capacitors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 0.56µF Film Capacitor 250V Polypropylene (PP), Metallized Radial 0.713" L x 0.272" W (18.10mm x 6.90mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ECW-F2564HAQ Datasheet |
| Internal Part Number | 898-ECW-F2564HAQ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Capacitors | |
| Family | Film Capacitors | |
| Manufacturer | Panasonic Electronic Components | |
| Series | ECW-F(A) | |
| Packaging | Bulk | |
| Part Status | Active | |
| Capacitance | 0.56µF | |
| Tolerance | ±3% | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 250V | |
| Dielectric Material | Polypropylene (PP), Metallized | |
| ESR (Equivalent Series Resistance) | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Mounting Type | Through Hole | |
| Package / Case | Radial | |
| Size / Dimension | 0.713" L x 0.272" W (18.10mm x 6.90mm) | |
| Height - Seated (Max) | 0.783" (19.90mm) | |
| Termination | PC Pins | |
| Lead Spacing | 0.591" (15.00mm) | |
| Applications | High Frequency, Switching | |
| Features | - | |
| Standard Package | 600 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ECW-F2564HAQ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ECW-F2564HAQ is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of ECW-F2564HAQ is new and unused, you can buy ECW-F2564HAQ Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ECW-F2564HAQ.
